PRIMA LED Ex NM
Plastic industrial LED emergency light fitting intended for environment with risk of explosion group II, category 3 (zone 2, 22), with diffuser made of translucent polycarbonate.
Code | Type | Luminous flux of LED modules [lm] |
Luminous flux of light fitting: [lm] |
Power consumption: [W] |
Net weight: [kg] |
||||
---|---|---|---|---|---|---|---|---|---|
63848 | PRIMA LED Ex 1.2ft PCc | 500 | 440 | 7 | 1,6 | ||||
Technical data
- System efficacy: lm/W
- Degree of protection: IP66
- Minimum ambient temperature: ta = 0 °C
- Maximum ambient temperature: ta = 50 °C
- Life time: 50000 hours / L80/B20
- Impact strength: IK10
- Certification CE, UKEX, ATEX
Materials / finishes
- Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
- Diffuser: translucent PC (high mechanical resistance, UV stability)
- Reflector: steel sheet, white (RAL 9003)

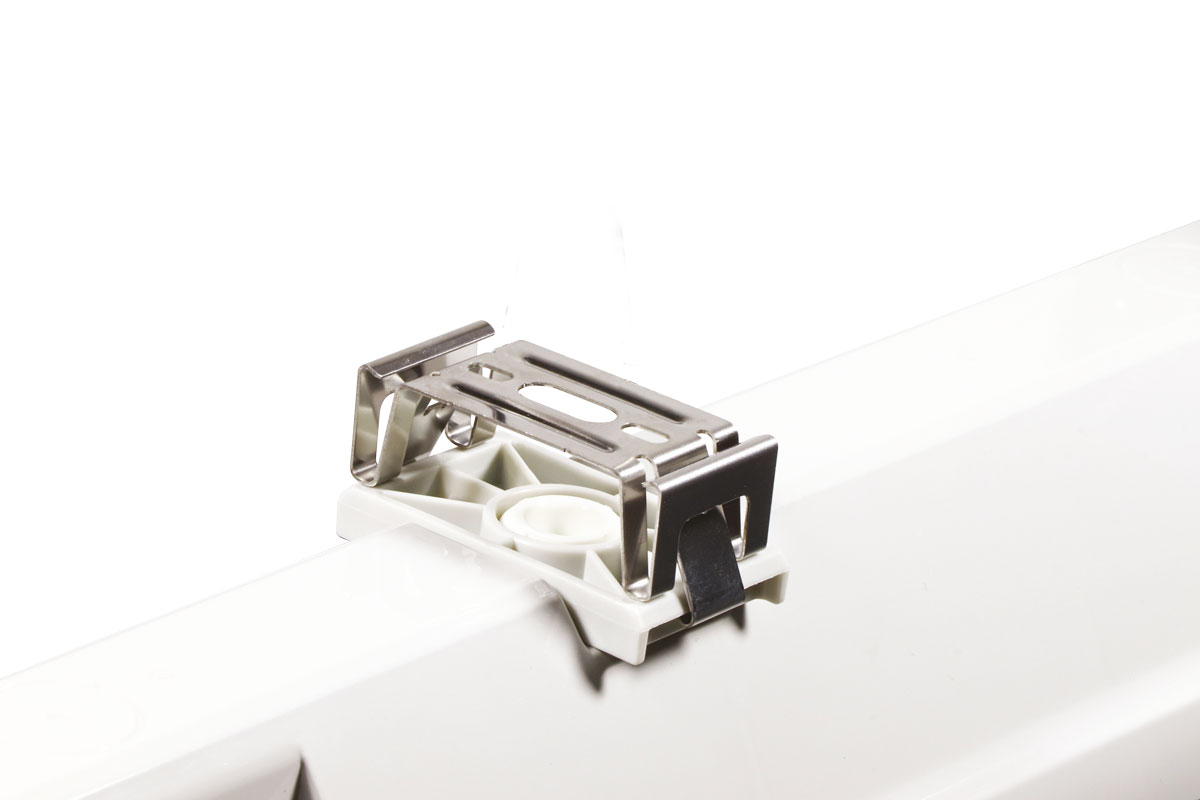

- Clips: stainless steel + polyamide
- Sealing: polyurethane (PUR), foam-filled base groove
- Connection: screwless five-pole terminal block
- Cable glands: Cable glands: M20X1,5, ATEX thread
Download
Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.
BIM
Download the BIM objects.
More about BIM at bim.lighting.
Accessories to PRIMA LED Ex NM
Drawings and graphs of luminosity
Non-maintained emergency luminaire for escape routes, available for use in high ambient temperature, ta = 50°C, is intended by its function and shape primarily for being in a set with Prima LED Ex light fittings.
The light fitting is suitable for the environment with a danger of explosion of gas, dust and combustible fumes. The light fittings meet the requirements of Government Decree 116/2016 Coll. and European Community Directive No.2014/34/EU.
The light fitting is certified for the environment:
- II 3G Ex nR IIC T6 Gc
- II 3D Ex tc IIIC T70°C Dc
The basic requirements for safety and health protection are secured by the verification of conformity with the standards according to EN 60079-15, EN 60079-0 and EN 60079-31.
It is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have increased resistance against deformation and impact.
