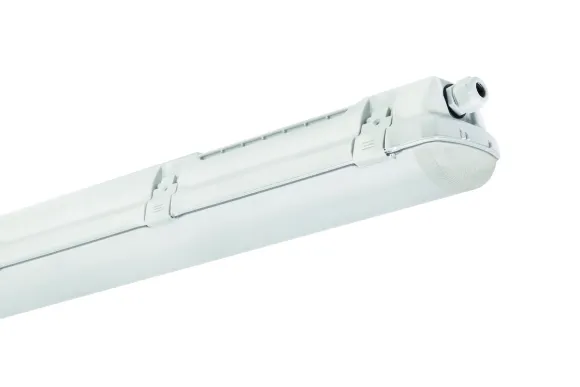

NANOTTICA NB

Features

• Narrow Beam angle (NB), optimum luminaire installation height from 7.5 to 12 m
• Patented optics ensures absolute control over light beam distribution
• MultiLumen (ML) function enables simple switching between up to four luminous fluxes via driver's DIP switch.
• Optional throughwiring (up to 7 wires inside the light fitting)
• Variable suspension pitch; optional installation of light fitting even on an existing structure on which the original light fittings were suspended
• Standard model - CRI > 80: 4000 K
• At request CRI > 80: 3000 K, 5000 K, 6500 K, CRI > 90: 3000 K, 4000 K, 5000 K, 6500 K
• Package contains stainless hooks and stainless brackets

Technical data

• System efficacy: 154 lm/W
• Degree of protection: IP66/IP69
• Minimum ambient temperature: ta = -25 °C
• Maximum ambient temperature: ta = 45 °C
• Minimum ambient temperature: ta = 0 °C version with emergency back-up source
• Maximum ambient temperature: ta = 40 °C version with emergency back-up source
• Life time: 150000 hours / L95 @25°C
• Unified Glare Ratio (UGR) from 22 to 24,1
• Impact strength: IK10
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE, ENEC, CB, HACCP

Attachment method

• Suitable for suspended mounting
• Suitable for ceiling mounting
• Suitable for wall mounting
• Suitable for surface mounting

Materials / finishes

• Body: Grey PC (high mechanical resistance, UV stability, RAL 7035)
• Diffuser: Clear PC with nano-optics (high mechanical resistance, UV stability)
• Reflector: Steel sheet, white (RAL 9003)
• Clips: Polyamide + 15 % fibreglass, Stainless steel + polyamide
• Sealing: Polyurethane (PUR), foam-filled base groove
• Connection: Screwless three-pole terminal block, Screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), Screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), Screwless five-pole terminal block, Screwless seven-pole terminal block, 7-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), Screwless seven-pole terminal block
• Cable glands: M20x1.5 thread (included)

Electric equipment

• It can be delivered in emergency version
• It can be delivered in dimmable version

Download

Data sheet

CE

ENEC

CB

HACCP

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to NANOTTICA NB

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

Ceiling height from 7.5 to 12 m, impact resistant.

Thanks to the MultiLumen function, the luminaire can be adjusted for changing lighting requirements without much effort.

The fixture boasts a low unified glare rating with UGR values its patented nanooptics. This ensures eye comfort, high visual performance and workplace safety, which indirectly translates into higher productivity.

The luminaire’s narrow-beam angle makes it suitable for premises with an optimum luminaire installation height of 7.5 to 12 m.

It is designed for indoor spaces, walls and large corridors in high industrial and agricultural buildings as well as in warehouses and sports facilities. It is also a great choice for warehouse aisles and roofed sports halls. IP69-rated and HACCP-compliant, the fitting’s design also makes it a perfect choice for the food industry.

Made of clear polycarbonate, the base and the diffuser boast high impact and deformation resistance.

Emissions in the environment of use may reduce the usability of the plastics.
