LINEA

Features

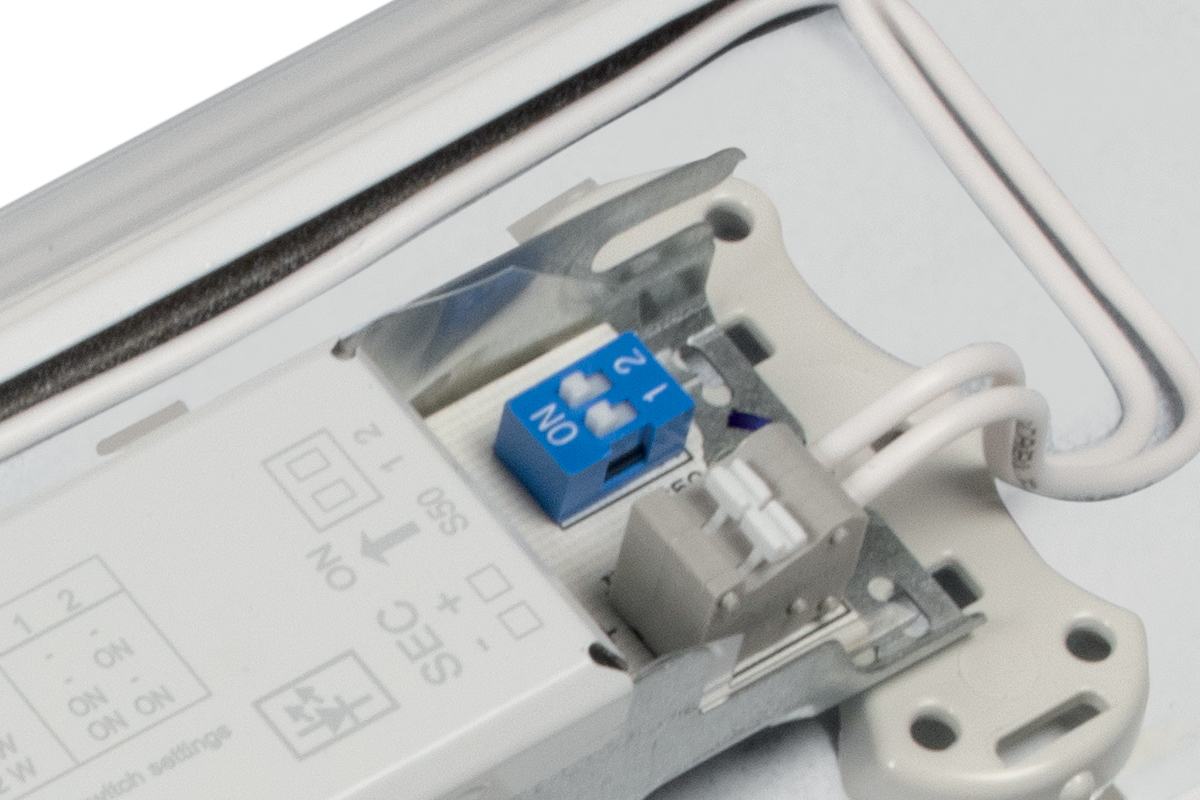

• MultiLumen (ML) function enables simple switching between up to four luminous fluxes via driver's DIP switch.
• Attachment directly to a ceiling or a wall with the use of screws

Technical data

• System efficacy: 139 lm/W
• Degree of protection: IP54
• Minimum ambient temperature: ta = -25 °C
• Maximum ambient temperature: ta = 35 °C
• Minimum ambient temperature: ta = 0 °C version with emergency back-up source
• Maximum ambient temperature: ta = 35 °C version with emergency back-up source
• Life time: 50000 hours / L90/B10
• Unified Glare Ratio (UGR) from 21,4 to 24,2
• Impact strength: IK10
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE

Attachment method

• Suitable for ceiling mounting
• Suitable for wall mounting
• Suitable for surface mounting

Materials / finishes

• Body: White polycarbonate (PC, RAL 9003), UV stable, impact resistant
• Diffuser: Translucent polycarbonate (PC), UV stable, impact resistant
• Reflector: Steel sheet, white (RAL 9003)
• Clips: Rotary cap (polyamide + 10 % fibreglass)
• Sealing: Polyurethane (PUR), foam-filled base groove
• Connection: Screwless five-pole terminal block
• Cable glands: rubber

Electric equipment

• It can be delivered in emergency version
• It can be delivered in dimmable version

Download

Data sheet

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to LINEA

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

Plastic indoor LED light fitting for surface mounting on the ceiling or on the wall, with impact-resistant diffuser made of translucent polycarbonate.

LINEA family is a perfect lighting solution of modern and technically functional illumination. It offers ceiling and wall-mounted luminaires with balanced shadowing and uniform light. Thanks to various sizes, individual premises as well as public buildings can be attractively illuminated.

Thanks to the MultiLumen function, the luminaire can be adjusted for changing lighting requirements without much effort.

The Linea light fitting line can be used as a comprehensive solution for lighting of office buildings, schools, hospitals, libraries, as well as individual lighting of flat interiors, corridors, sanitary and welfare facilities.

Thanks to its high luminous efficiency and low electricity consumption it is a suitable replacement for light fittings with fluorescent tubes.
