Plastic industrial LED light fitting suitable for rack aisleways with high ceilings, with diffuser made of translucent polycarbonate.

Product variants and technical data Clicking the 5-digit code displays other product information.
Code Type Ta Max.:
Luminous flux of LED modules
Luminous flux of light fitting:
Power consumption:
System efficacy:
Net weight:
78060 FUTURA 2.4ft NB PC Al 8800/840 45 8710 7320 51 144 3,3 1172 700
78070 FUTURA 2.4ft NB PC Al 12800/840 35 14000 11760 84 140 3,3 1172 700
78090 FUTURA 2.5ft NB PC Al 11000/840 45 12050 10120 71 143 3,9 1452 940
78080 FUTURA 2.5ft NB PC Al 16000/840 35 17550 14740 104 142 3,9 1452 940


  • Standard model - CRI > 80: 4000 K

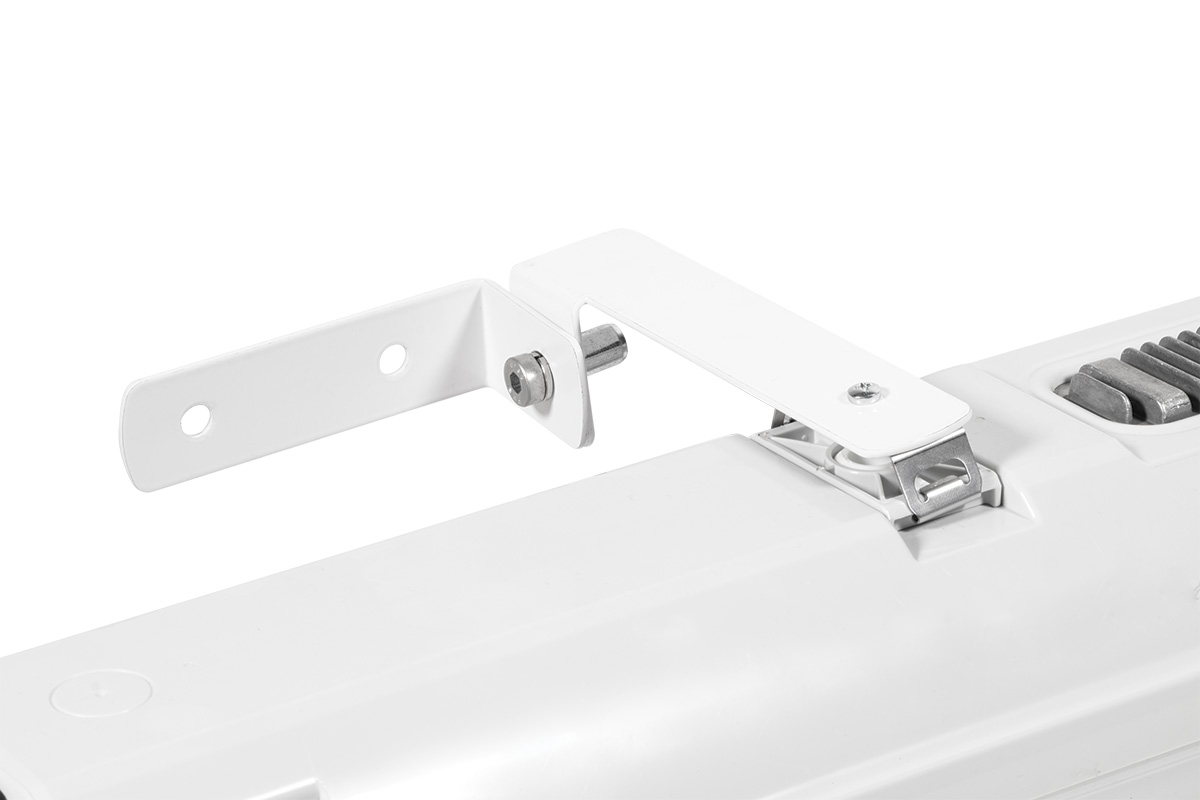

  • Package contains stainless hooks and stainless brackets

Technical data

  • System efficacy: 144 lm/W
  • Degree of protection: IP66
  • Minimum ambient temperature: ta = -25 °C
  • Maximum ambient temperature: ta = 45 °C
  • Minimum ambient temperature: ta = 0 °C version with emergency back-up source
  • Maximum ambient temperature: ta = 25 °C version with emergency back-up source
  • Life time: 50000 hours / L90/B10
  • Unified Glare Ratio (UGR) from 22 to 22
  • Impact strength: IK10
  • Chromaticity tolerance (initial MacAdam): SDCM3
  • Certification CE, HACCP

Attachment method

  • Suitable for suspended mounting
  • Suitable for ceiling mounting
  • Suitable for wall mounting
  • Suitable for surface mounting

Materials / finishes

  • Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
  • Diffuser: translucent PC (high mechanical resistance, UV stability)
  • Reflector: parabolic polished aluminium with narrow beam (NB) angle
  • Clips: polyamide + 15 % fibreglass
  • Sealing: polyurethane (PUR), foam-filled base groove
  • Connection: screwless three-pole terminal block
  • Cable glands: PG 13.5 thread

Electric equipment

  • It can be delivered in emergency version
  • It can be delivered in dimmable version


Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.


Download the BIM objects.
More about BIM at bim.lighting.

Accessories to FUTURA NB

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Plastic industrial LED light fitting suitable for rack aisleways with high ceilings, with diffuser made of translucent polycarbonate.

The light fitting with narrow emitting characteristics is suitable to illuminate storage rack lanes and narrow spaces with high ceilings. Its assembly height is 10-15 m.

The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

(It is necessary to consider exhalation in the air which can reduce the usability of the plastic and aluminium at installations in an aggressive environment).
