TAURI

Technical data

• System efficacy: 144 lm/W
• Degree of protection: IP20
• Minimum ambient temperature: ta = -25 °C
• Maximum ambient temperature: ta = 50 °C
• Minimum ambient temperature: ta = 0 °C version with emergency back-up source
• Maximum ambient temperature: ta = 25 °C version with emergency back-up source
• Life time: 50000 hours / L90/B10
• Unified Glare Ratio (UGR) from 22 to 22
• Impact strength: IK08
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE

Attachment method

• Suitable for suspended mounting
• Suitable for ceiling mounting
• Suitable for wall mounting
• Suitable for surface mounting

Materials / finishes

• Reflector: Steel sheet, white (RAL 9003)
• Connection: Screwless three-pole terminal block, Screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), Screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), Screwless five-pole terminal block, Screwless seven-pole terminal block, 7-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), Screwless seven-pole terminal block

Electric equipment

• It can be delivered in emergency version

Download

Data sheet

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

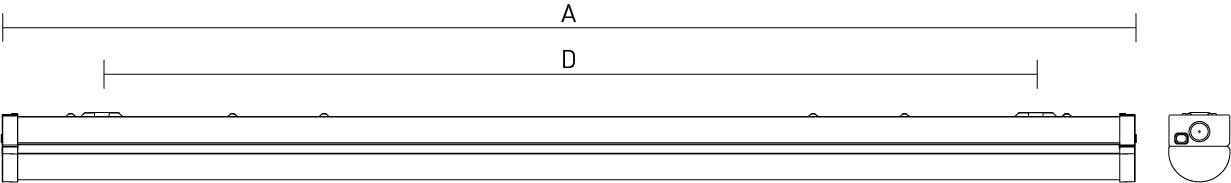

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

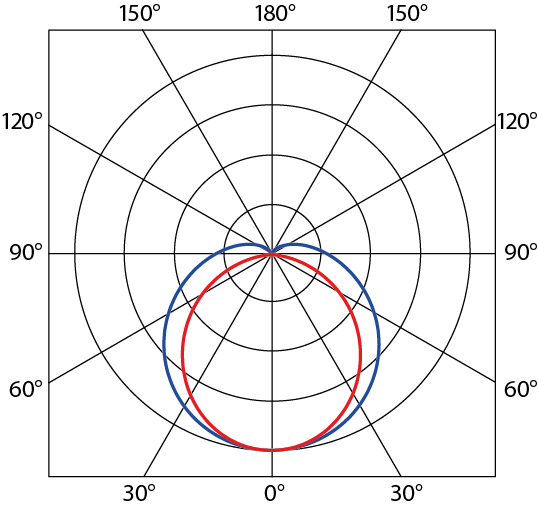

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

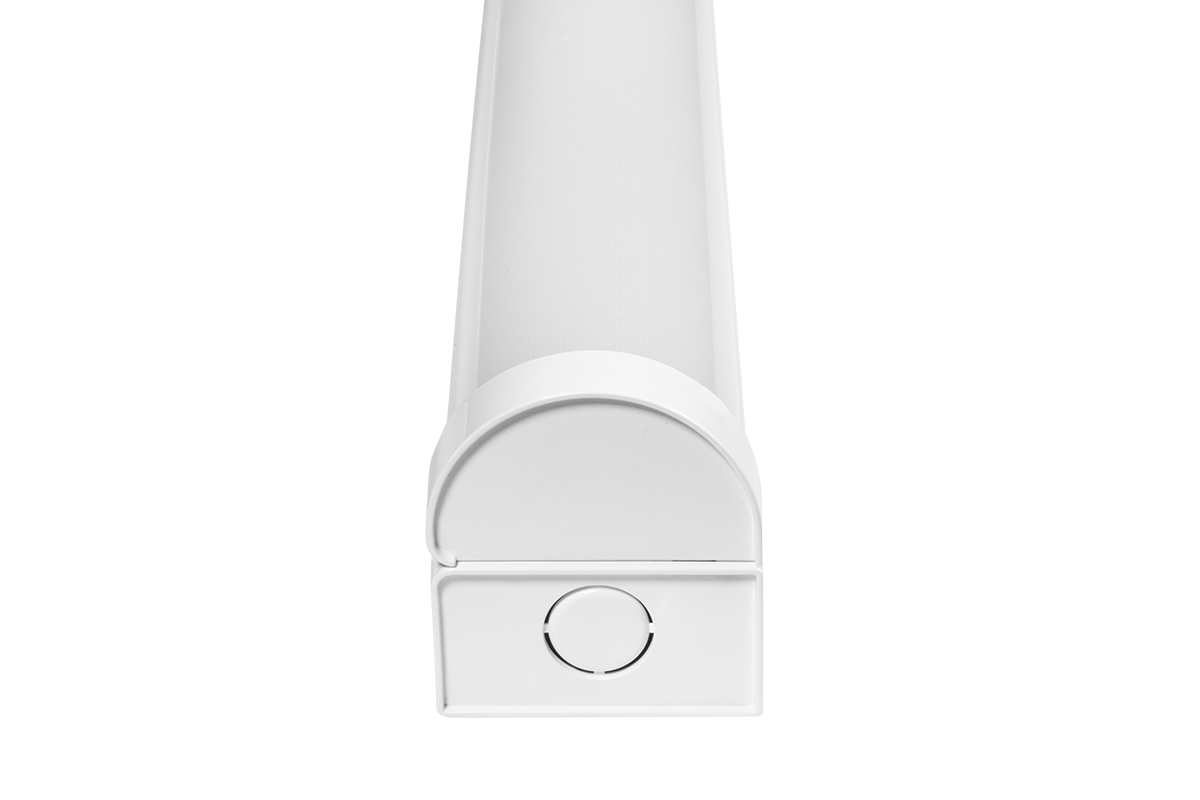

TAURI is a modern, versatile interior light fixture that offers several light outputs and color spectra in one body.

Thanks to this variability, it becomes a modern interior element with the function of selecting the light intensity, which will create an atmosphere exactly according to your wishes.

TAURI is a type of luminaire that will enliven the interior and at the same time offers its users a simple option of setting and adapting to specific conditions.
