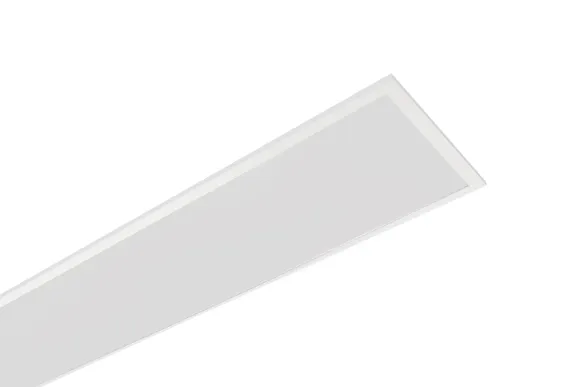

SIRIS

Technical data

• System efficacy: 151 lm/W
• Degree of protection: IP20
• Minimum ambient temperature: ta = -25 °C
• Maximum ambient temperature: ta = 35 °C
• Minimum ambient temperature: ta = 0 °C version with emergency back-up source
• Maximum ambient temperature: ta = 25 °C version with emergency back-up source
• Life time: 50000 hours / L90/B10
• Unified Glare Ratio (UGR) from 18 to 18
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE

Attachment method

• Suitable for built-in mounting

Materials / finishes

• Body: Aluminium profile, white (RAL 9003)
• Diffuser: Translucent polycarbonate (PC), UV stable, impact resistant
• Reflector: Steel sheet, white (RAL 9003)
• Connection: Zapojení do kompaktního driveru se sponou s odlehčením tahu

Electric equipment

• It can be delivered in dimmable version
• It can be delivered in emergency version

Download

Data sheet

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to SIRIS

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

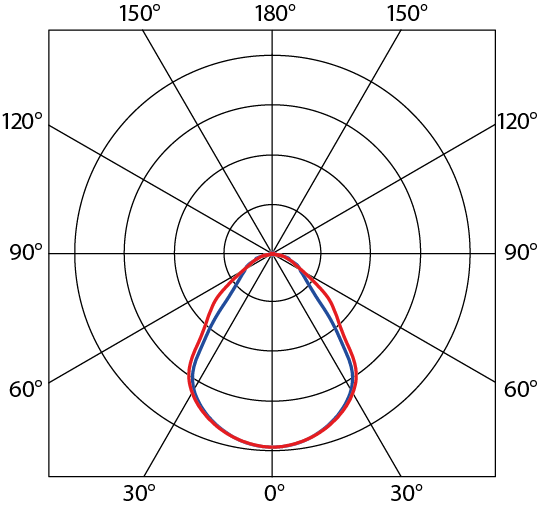

Luminosity curve example

Elegant design and functionality – Luminaires are available in sizes 595x595mm and 295x1195mm, which allow perfect fitting into the standard suspended ceiling systems or the possibility of simple installation directly on the ceiling. For an even more stylish look, you can order a metal white frame, which will give the luminaire a sophisticated and elegant look.

It is the luminaire with multi-layer micropyramid optics (MPR) for light distribution without glare according to EN 12464-1 with UGR ‹19.

SIRIS LED panels are the ideal solution for modern lighting in offices, commercial spaces, educational facilities and healthcare centers and other architectural needs.

Thanks to high luminous efficiency and low energy consumption, it is a suitable replacement for fluorescent tubes.
