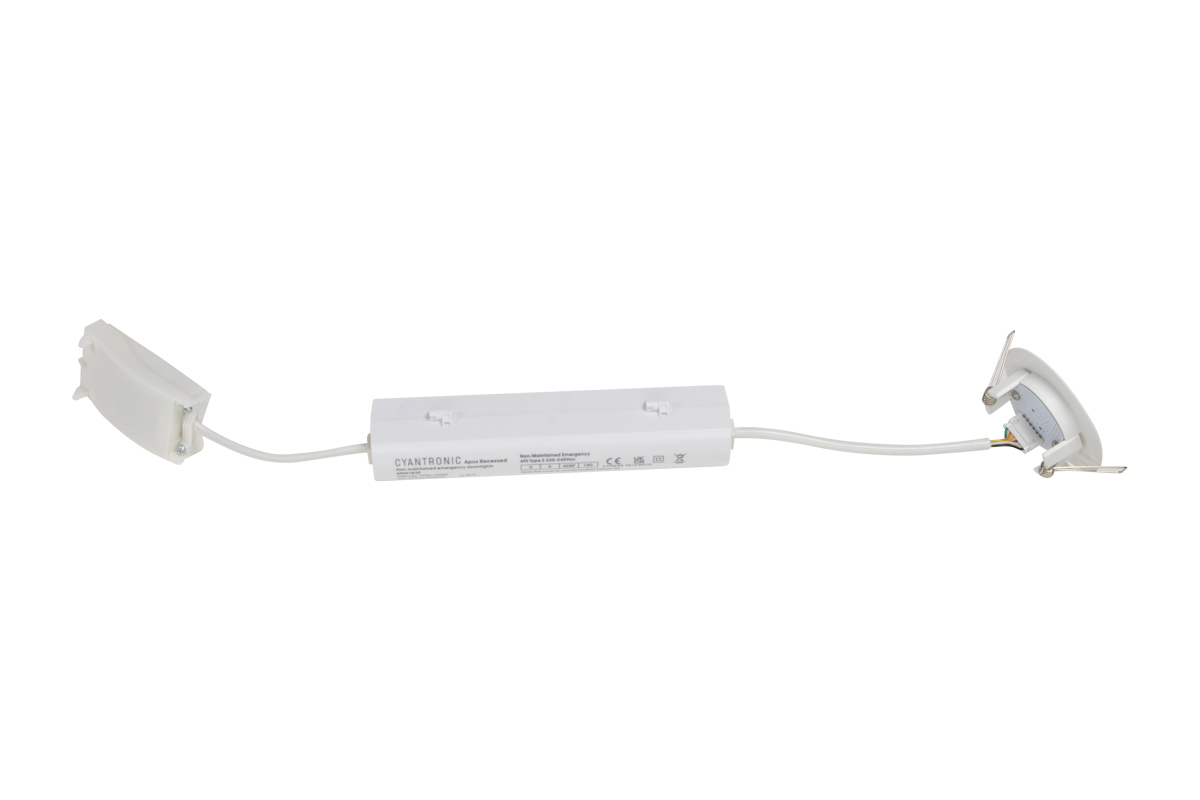

NYX R

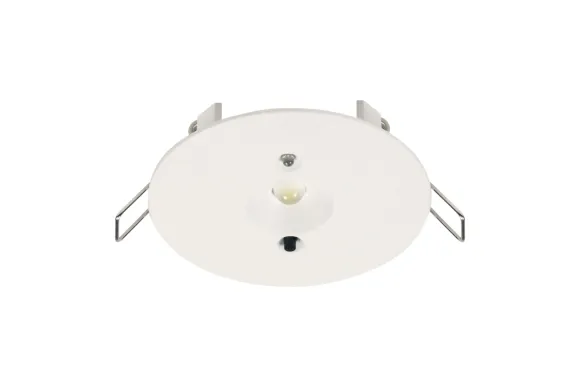

• AP - wide-angle symmetrical optics for antipanic space illumination

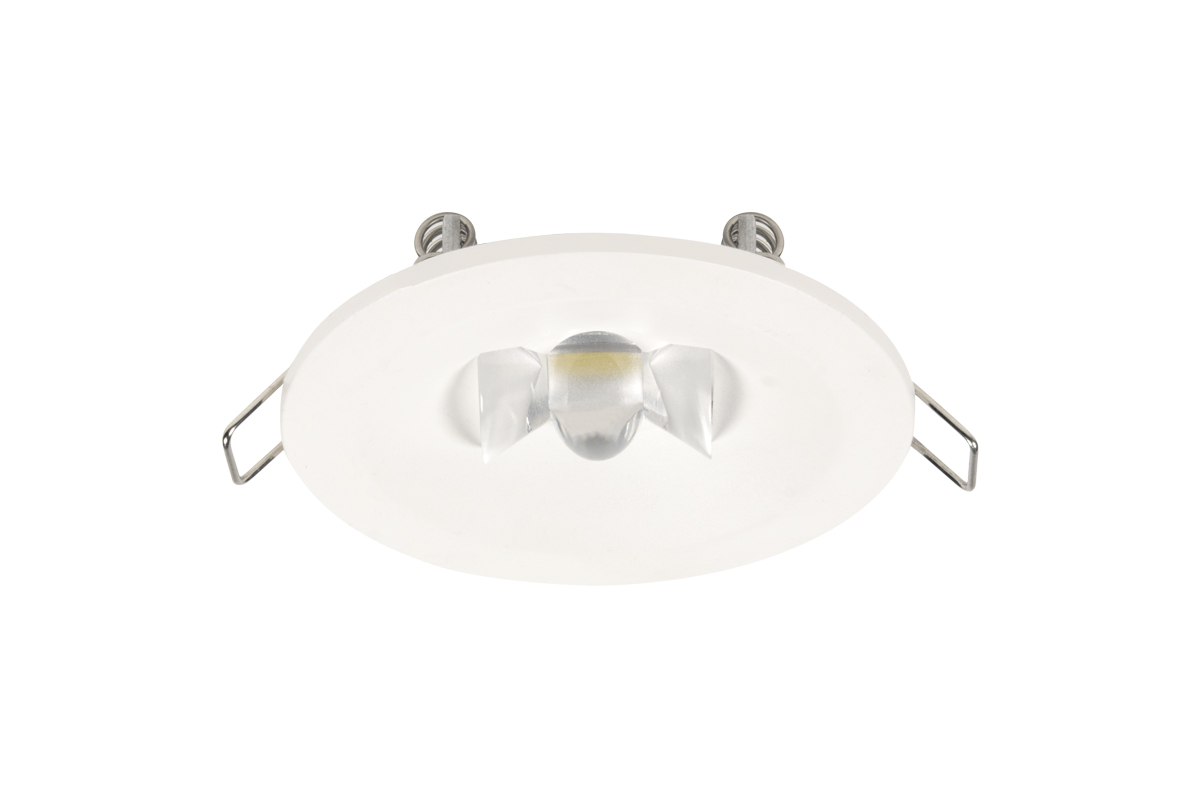

• ESC - elliptical optics for illuminating the escape route with 1 lx on its axis

Advantages

• Emergency module 3hrs

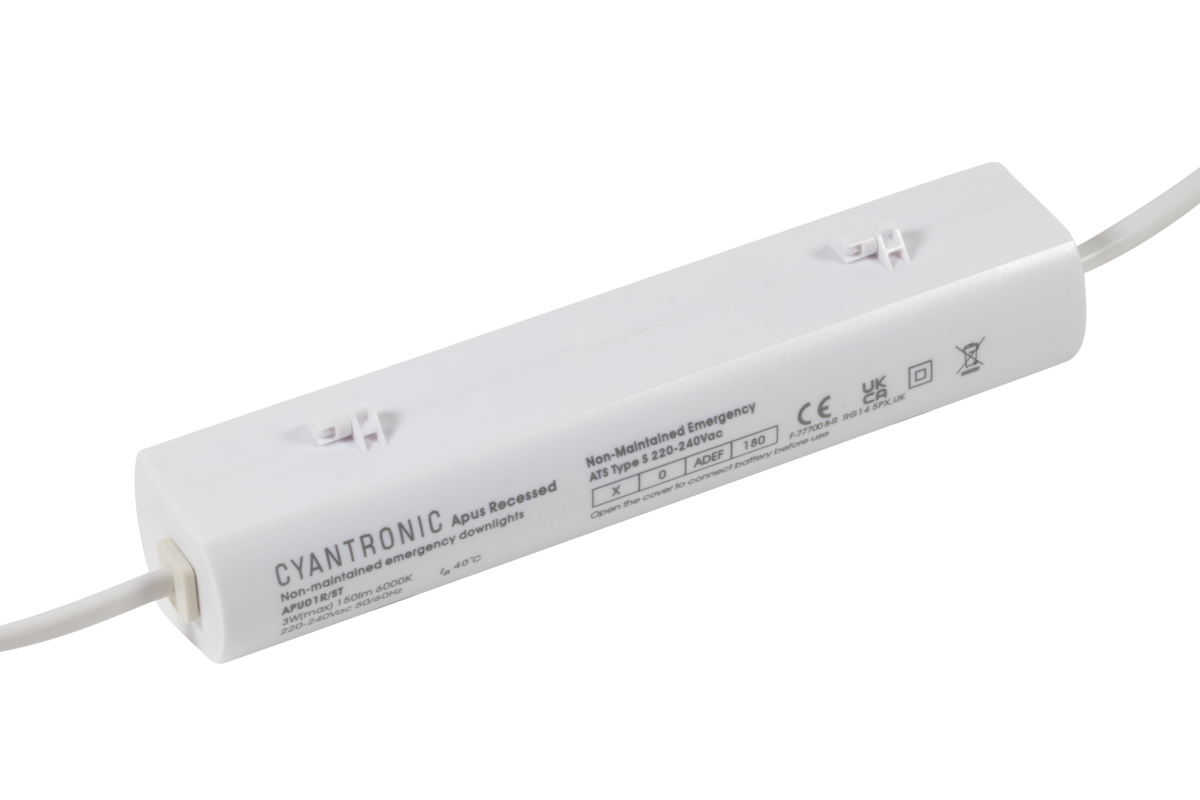

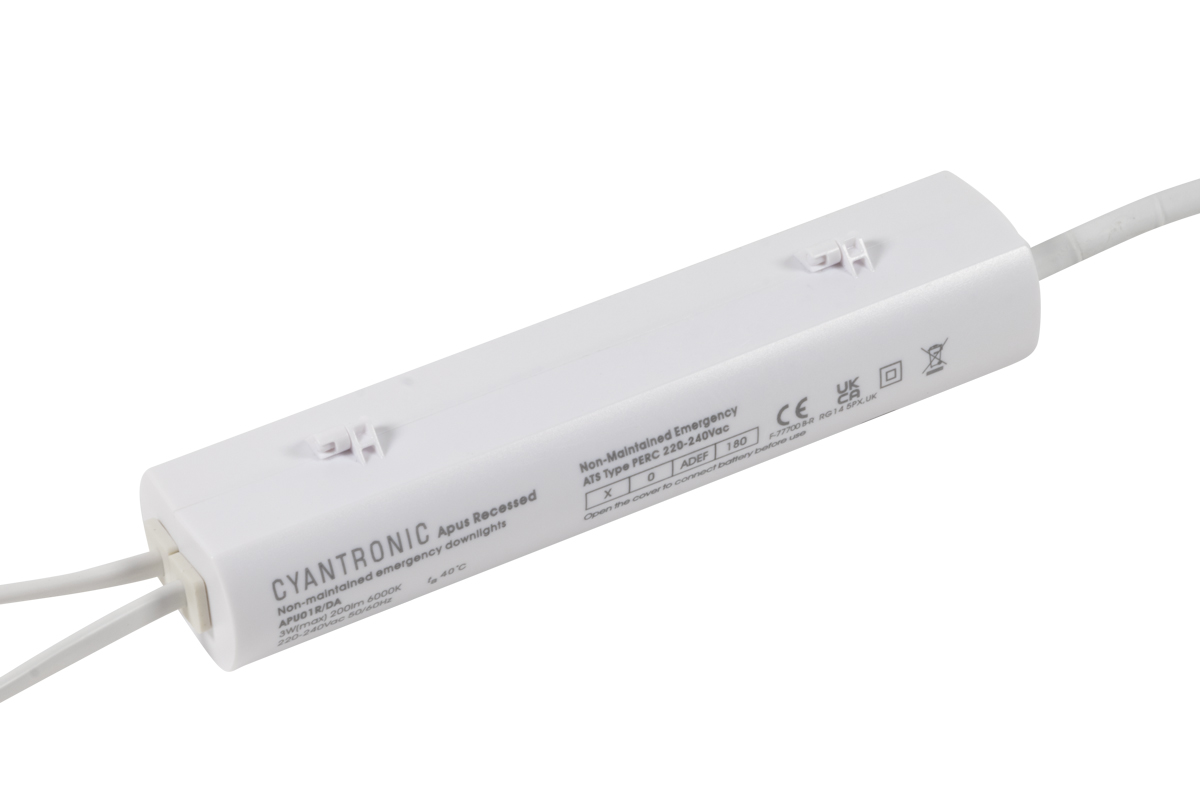

• LiFePO4 battery with autotest (M3hAt) or DALI (M3hDA)
• Status LED indicator of correct operation
• Electronic protection against complete discharge, overcharge and temperature management
• Possible connection for emergency (SE) lighting

Technical data

• System efficacy: 190 lm/W
• Degree of protection: IP20
• Minimum ambient temperature: ta = 0 °C
• Maximum ambient temperature: ta = 40 °C
• Life time: 50000 hours / L80/B20
• Certification CE

Materials / finishes

• Body: White polycarbonate
• Diffuser: Transparent polycarbonate, UV stable, with optics for area lighting, Transparent polycarbonate, UV stable, with optics for path lighting

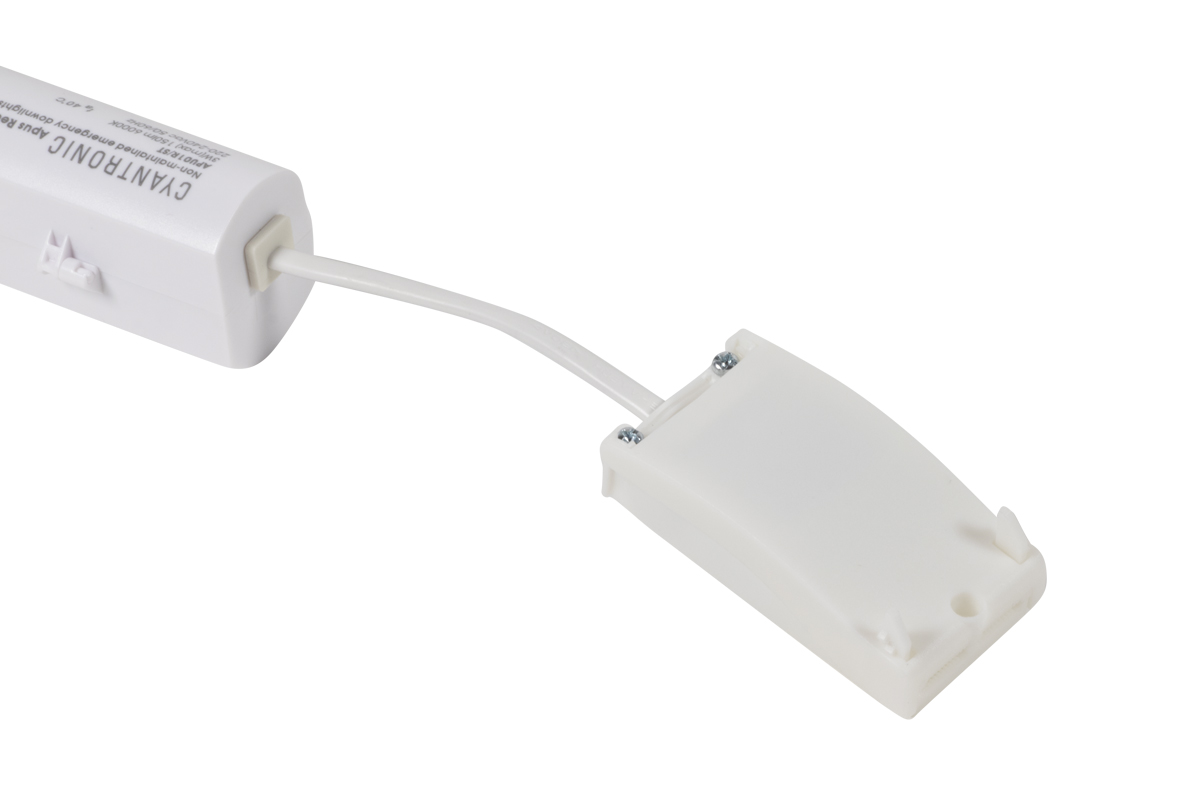

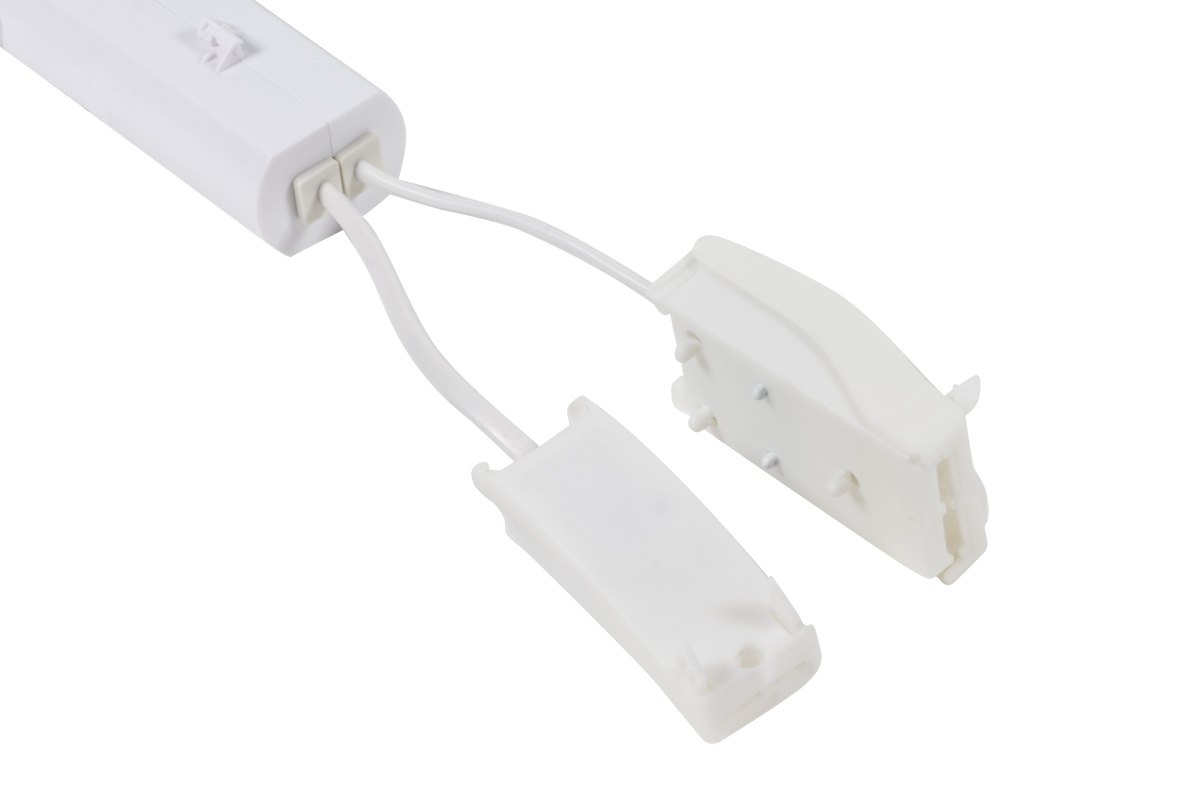

• Connection: Screwless three-pole terminal block

Download

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

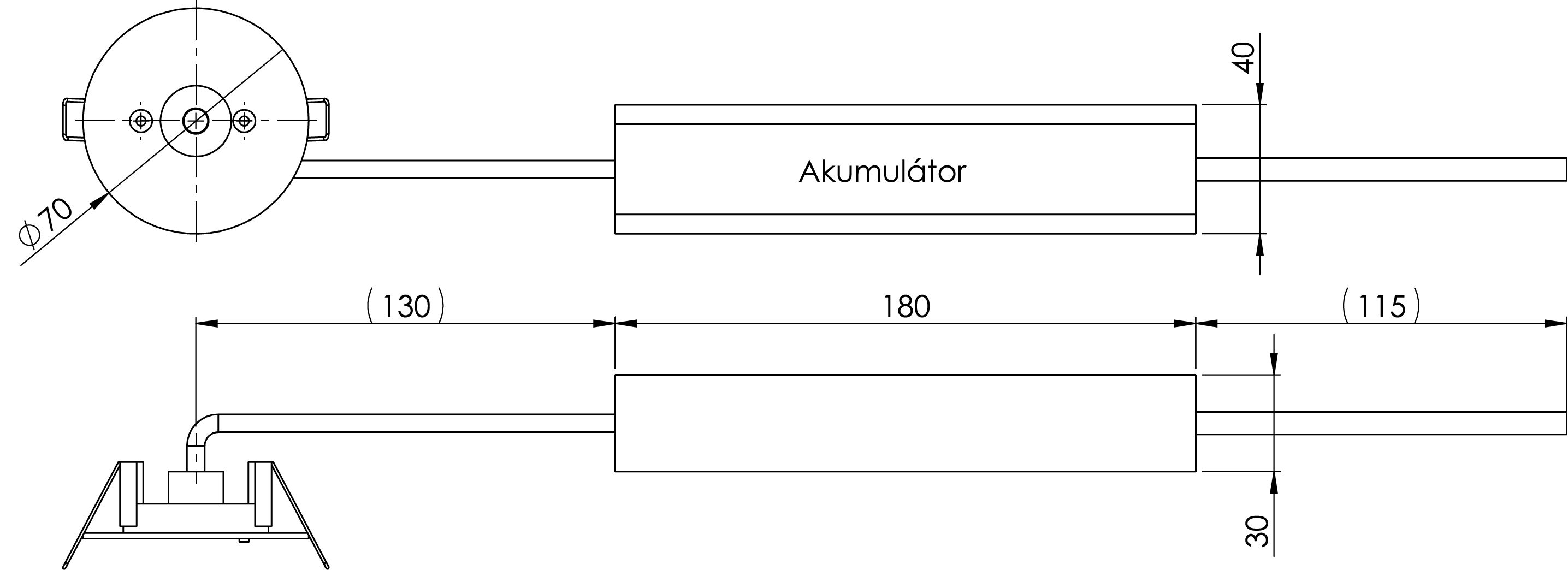

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

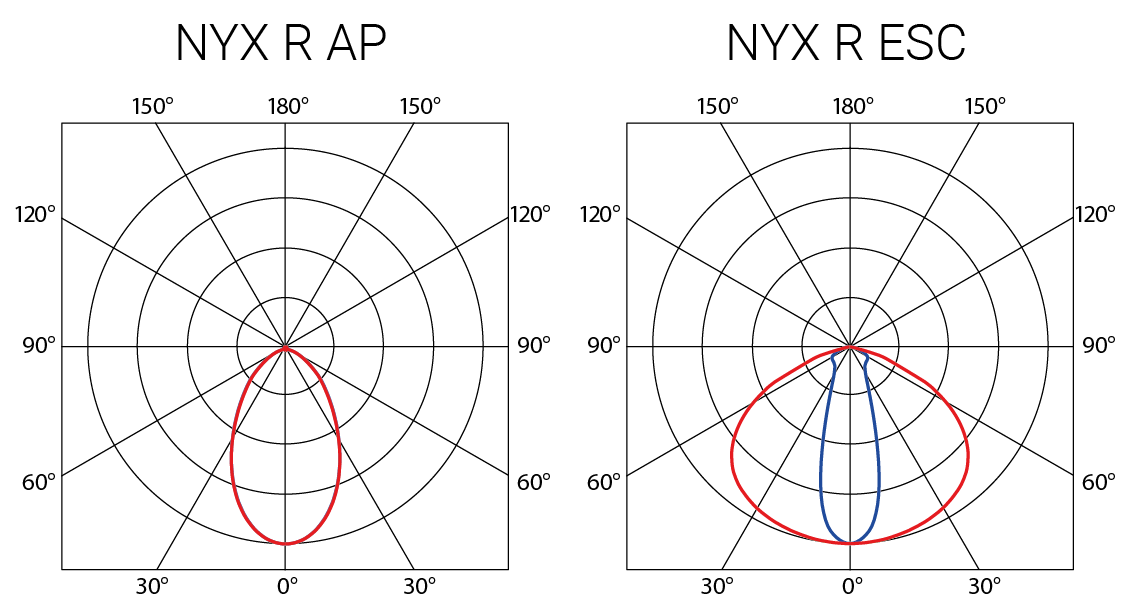

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

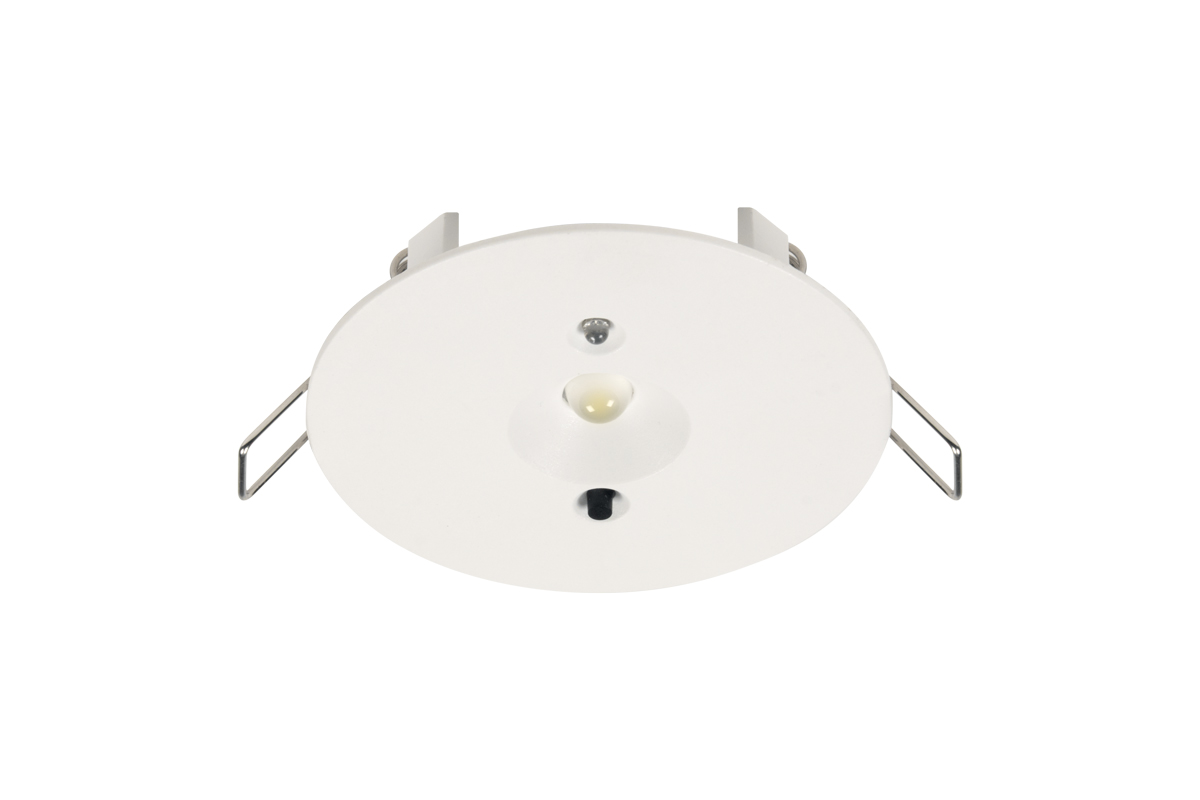

Surface or recessed stand-alone luminaire for emergency lighting of escape routes and antipanic emergency lighting of premises.

The luminaire is suitable for anti-panic lighting of the area or for highlighting the place according to EN 1838 including the requirement for locations with an illumination of 5lx.

USES:
Public buildings, office buildings and shopping centres, industrial buildings, medical facilities, residential buildings.
