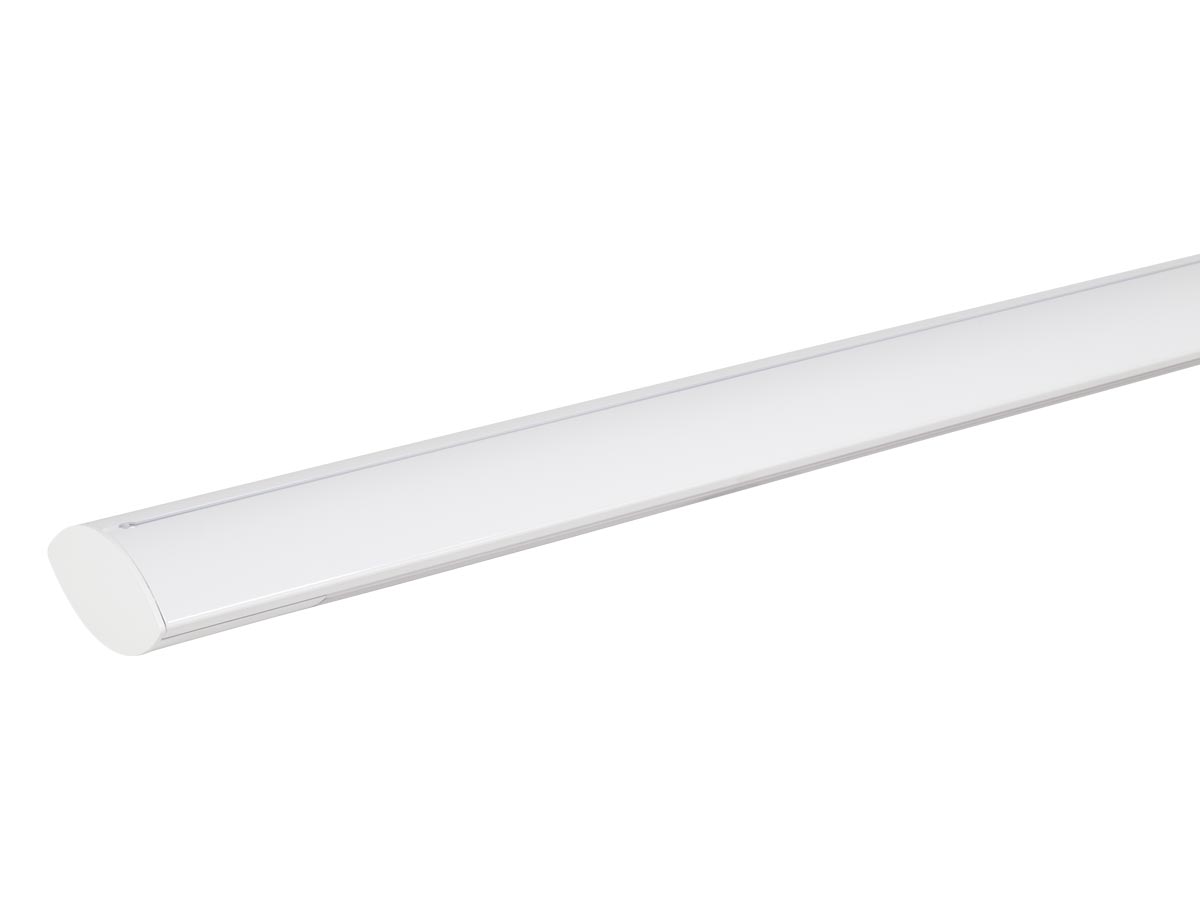

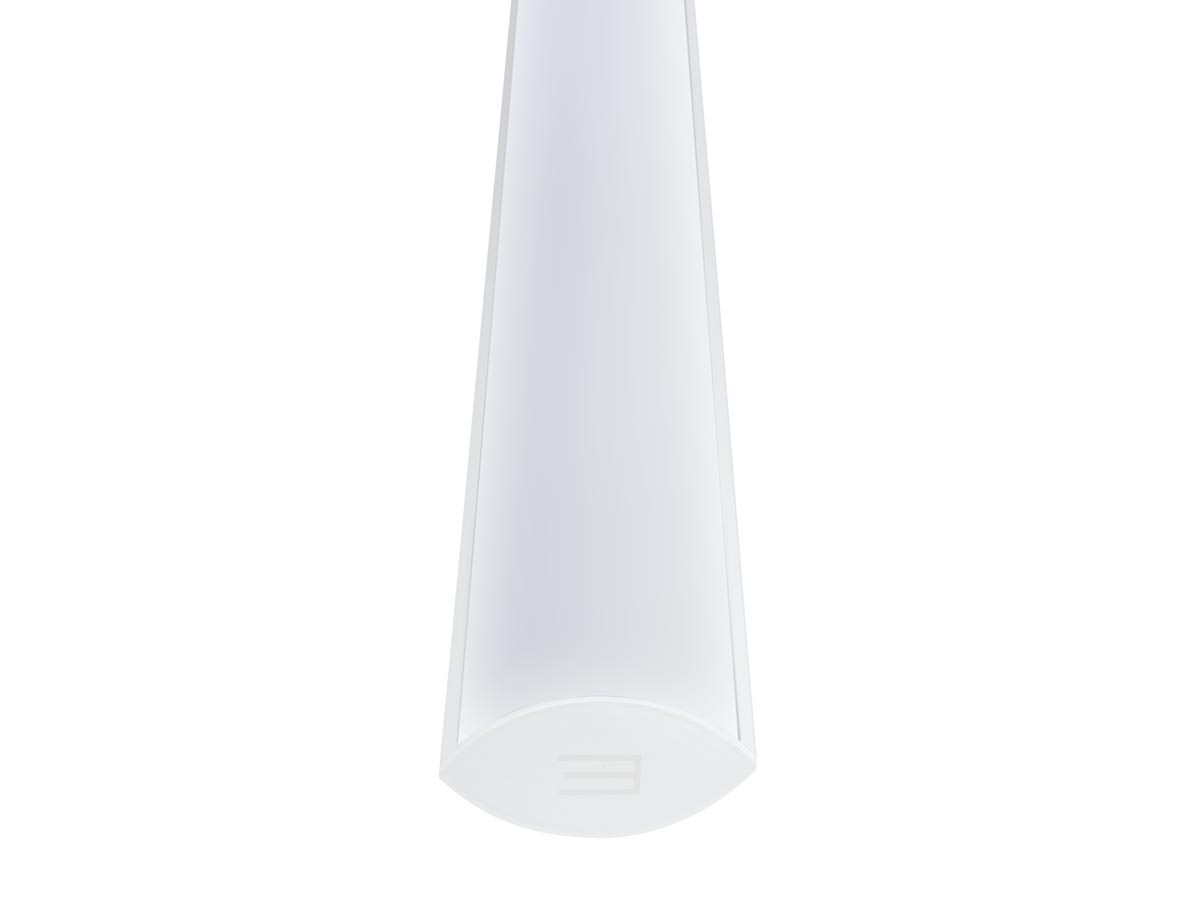

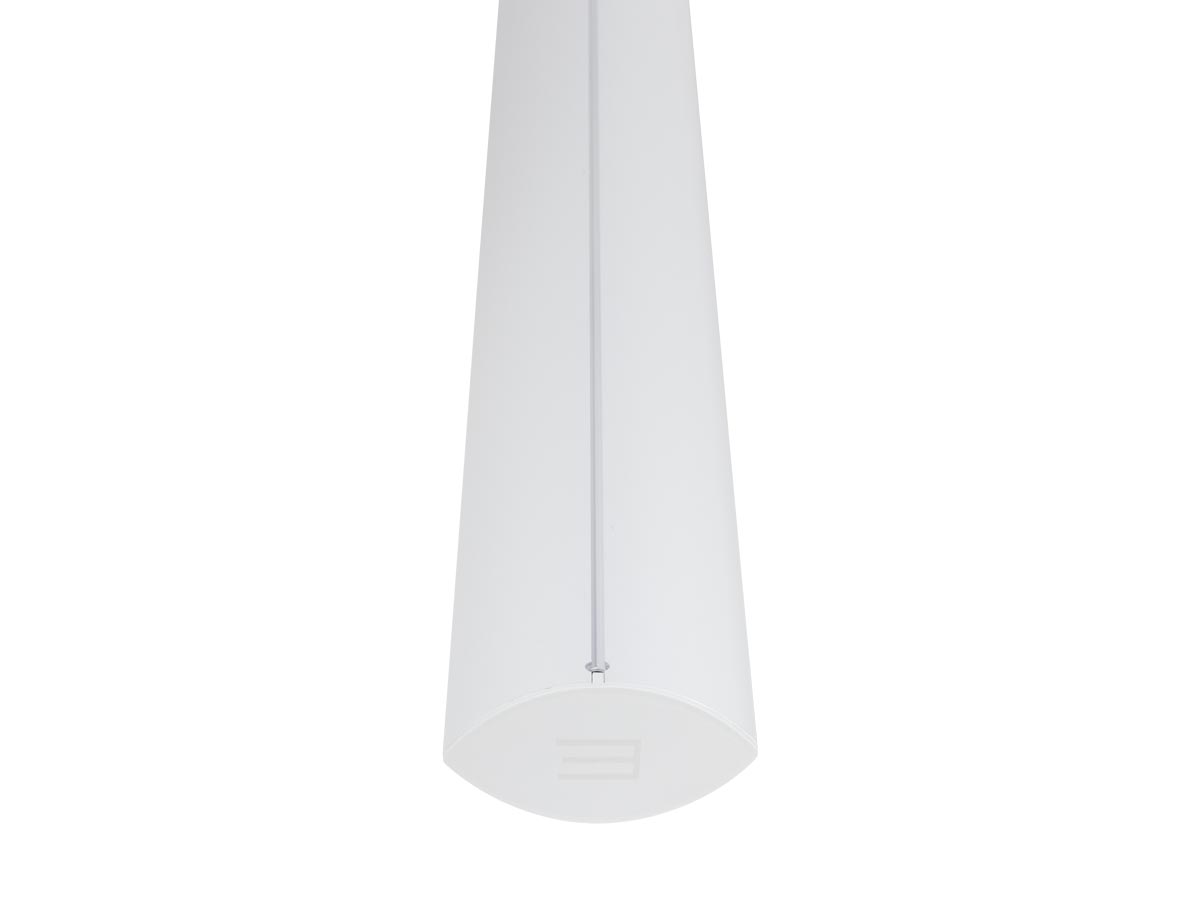

MO SLIM

Features

• The package does not include end caps, connecting pieces or suspension. Accessories must always be ordered for installation.

Technical data

• System efficacy: 146 lm/W
• Degree of protection: IP20
• Life time: 50000 hours / L90/B10
• Unified Glare Ratio (UGR) from 24 to 26,4
• Impact strength: IK08
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE

Materials / finishes

• Body: Aluminium profile, white (RAL 9003), Aluminium profile, aluminium white colour (RAL 9006)
• Diffuser: Translucent polycarbonate (PC), UV stable, impact resistant
• Reflector: Steel sheet, white (RAL 9003)
• Connection: 2x screwless, five-pole terminal block, three-phase interconnection

Electric equipment

• It can be delivered in emergency version
• It can be delivered in dimmable version

Download

Data sheet

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to MO SLIM

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

Indoor light fitting for batten suspension with the help of cord suspensors and binders, with diffuser made of polycarbonate with translucent film.

Interior light fitting from aluminum profile and PC of diffuser It is suitable for selling premises, offices, corridors, entrance and terminal halls, interiors of schools, lecture rooms and hospitals. The light fittings can be easy connected to different lengths and shapes.
