LUXOR LED

Technical data

• System efficacy: 112 lm/W
• Degree of protection: IP40
• Minimum ambient temperature: ta = -25 °C
• Maximum ambient temperature: ta = 35 °C
• Minimum ambient temperature: ta = 0 °C version with emergency back-up source
• Maximum ambient temperature: ta = 25 °C version with emergency back-up source
• Life time: 50000 hours / L90/B10
• Unified Glare Ratio (UGR) from 12,6 to 13,6
• Impact strength: IK02
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE

Attachment method

• Suitable for suspended mounting
• Suitable for ceiling mounting
• Suitable for wall mounting
• Suitable for surface mounting

Materials / finishes

• Body: steel sheet, white (RAL 9003), steel sheet, aluminium silver colour (RAL 9006)
• Diffuser: glossy parabolic louvre, UGR ‹19
• Reflector: steel sheet, white (RAL 9003)
• Connection: screwless three-pole terminal block, screwless five-pole terminal block, screwless seven-pole terminal block
• Cable glands: Cable glands: rubber

Electric equipment

• It can be delivered in emergency version
• It can be delivered in dimmable version

Download

Data sheet

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to LUXOR LED

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

Various sizes and three mounting methods are available.

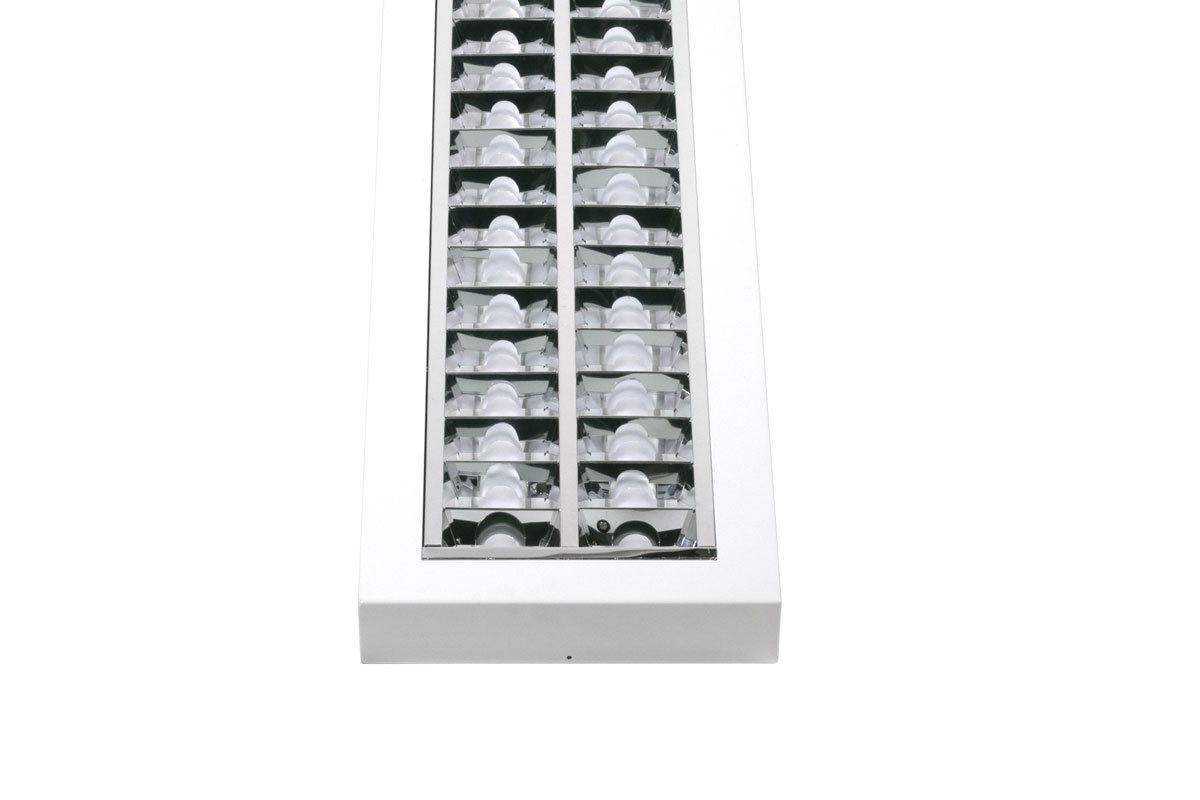

It is the luminaire with highly specular parabolic louvre of glare-free effects, UGR ˂ 19.
LUXOR LED creates an atmosphere of well-being and can be used for daycare facilities too.

LUXOR LED complies the European Lighting Standard EN 12461-1 and can also be used for  day nurseries.
