EMPUSA

Advantages

• Emergency module 3hrs
• LiFePO4 battery with autotest (M3hAt) or DALI (M3hDA)
• Status LED indicator of correct operation
• Electronic protection against complete discharge, overcharge and temperature management
• Possible connection for both permanent (SA) and emergency (SE) lighting

Technical data

• System efficacy: lm/W
• Degree of protection: IP20
• Minimum ambient temperature: ta = 0 °C
• Maximum ambient temperature: ta = 40 °C
• Life time: 50000 hours / L80/B20
• Certification CE

Materials / finishes

• Body: White polycarbonate
• Diffuser: Clear glass, UV stable
• Connection: Screwless three-pole terminal block

Download

Data sheet

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

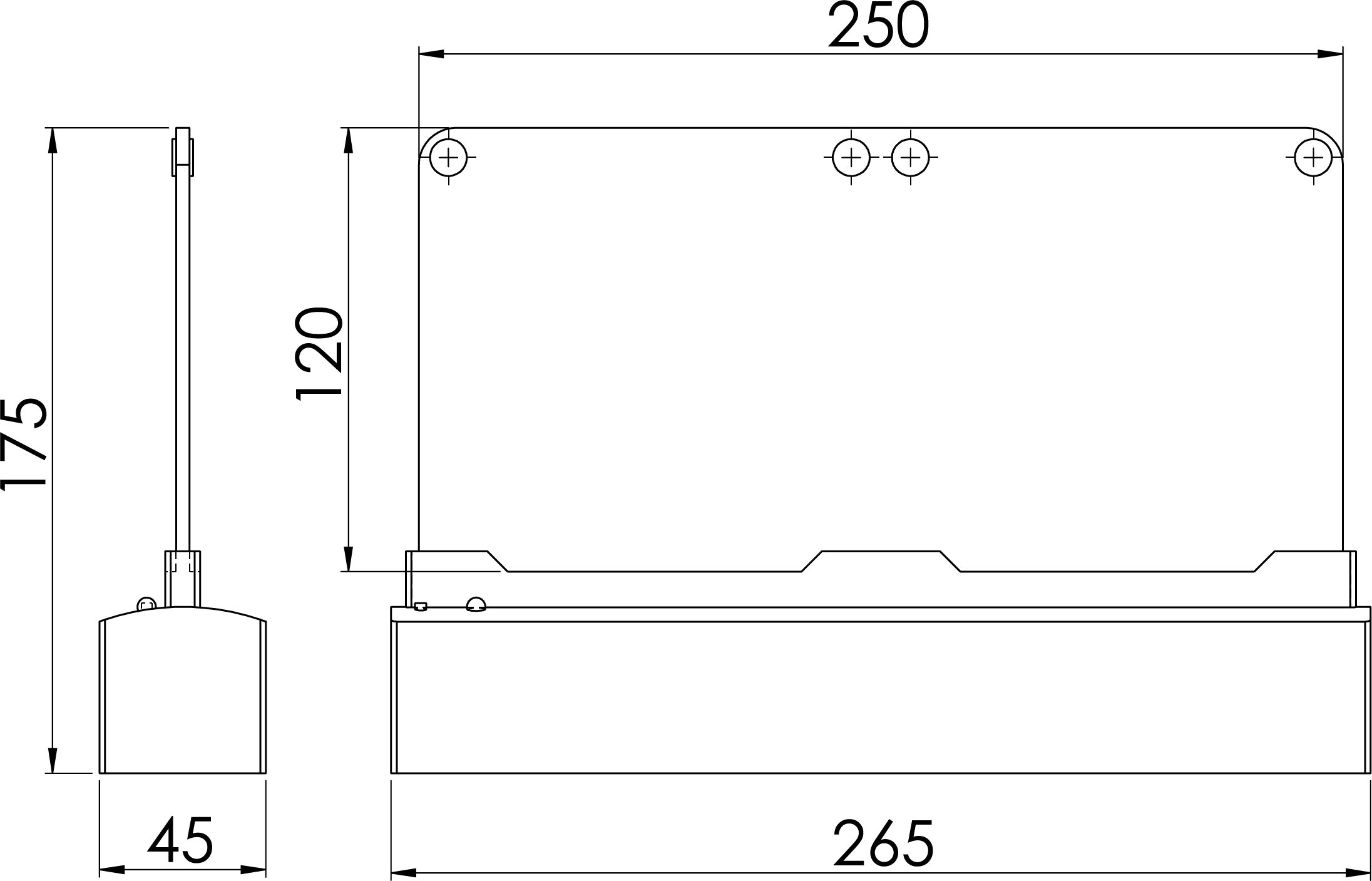

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

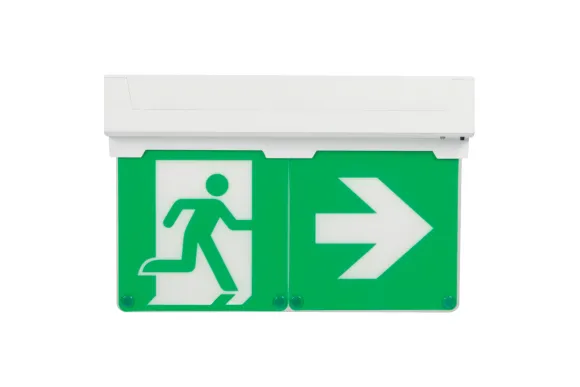

Stand-alone luminaire for both permanent or emergency marking of escape routes and determining the direction of escape and facilitating their quick recognition and use. A key element of security systems in public and private areas. Its main purpose is to provide a visibly marked escape route in the event of a power outage and to prevent panic. Safely and efficiently evacuate the area.

The wide range of accessories included in the package allows for five different fixing methods:

• Hanging luminaire
• Ceiling luminaire
• Wall luminaire (longitudinal / transverse mounting)
• Recessed luminaire

USES:
Public buildings, office buildings and shopping centers, industrial buildings, medical facilities, apartment buildings.
