BELTR LED

Batten plastic indoor LED light fitting for surface mounting on the ceiling or on the wall, with base made of metal sheet and with diffuser made of translucent polycarbonate.

Product variants and technical data Clicking the 5-digit code displays other product information.
Code Type Luminous flux of LED modules
[lm]		 Luminous flux of light fitting:
[lm]		 Power consumption:
[W]		 System efficacy:
[lm/W]		 Net weight:
[kg]		 A
[mm]		 D
[mm]
54110 BELTR LED 1.2ft 1300/840 1320 1070 8 134 0,8 610 500
54120 BELTR LED 1.2ft 1600/840 1580 1280 10 128 0,8 610 500
54180 BELTR LED 1.4ft 2600/840 2580 2090 16 131 1,5 1170 1000
54140 BELTR LED 1.4ft 3200/840 3110 2520 20 126 1,4 1170 1000
54190 BELTR LED 1.5ft 3250/840 3240 2620 20 131 1,9 1450 1000
54150 BELTR LED 1.5ft 4000/840 3880 3140 24 131 1,8 1450 1000
54210 BELTR LED 2.2ft 2600/840 2630 2130 16 133 1,4 610 500
54220 BELTR LED 2.2ft 3200/840 3110 2520 19 133 1,3 610 500
54280 BELTR LED 2.4ft 5200/840 5150 4170 31 135 2,4 1170 1000
54240 BELTR LED 2.4ft 6400/840 6260 5070 37 137 2,3 1170 1000
54290 BELTR LED 2.5ft 6500/840 6380 5170 38 136 3,1 1450 1000
54250 BELTR LED 2.5ft 8000/840 7750 6280 46 137 2,9 1450 1000
CE ENEC CB
BELTR LED BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC BELTR LED BASIC

We are preparing to launch a new version with IP44 protection. Availability 1/2024

Technical data

  • System efficacy: 137 lm/W
  • Degree of protection: IP40
  • Minimum ambient temperature: ta = -25 °C
  • Maximum ambient temperature: ta = 35 °C
  • Minimum ambient temperature: ta = 0 °C version with emergency back-up source
  • Maximum ambient temperature: ta = 25 °C version with emergency back-up source
  • Life time: 50000 hours / L90/B10
  • Unified Glare Ratio (UGR) from 21 to 23
  • Impact strength: IK08
  • Chromaticity tolerance (initial MacAdam): SDCM3
  • Certification CE, ENEC, CB

Attachment method

  • Suitable for suspended mounting
  • Suitable for ceiling mounting
  • Suitable for wall mounting
  • Suitable for surface mounting

Materials / finishes

  • Body: steel sheet, white (RAL 9003)
  • Diffuser: translucent polycarbonate (PC), UV stable, impact resistant
  • Reflector: steel sheet, white (RAL 9003)
  • Connection: screwless three-pole terminal block, screwless five-pole terminal block, screwless seven-pole terminal block, feed-through, Wieland (S) GST15i5
  • Cable gland: white, rubber

Electric equipment

  • It can be delivered in dimmable version
  • It can be delivered in emergency version

Download

CE
ENEC
CB

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

Graphisoft ARCHICAD
Autodesk REVIT

Accessories to BELTR LED

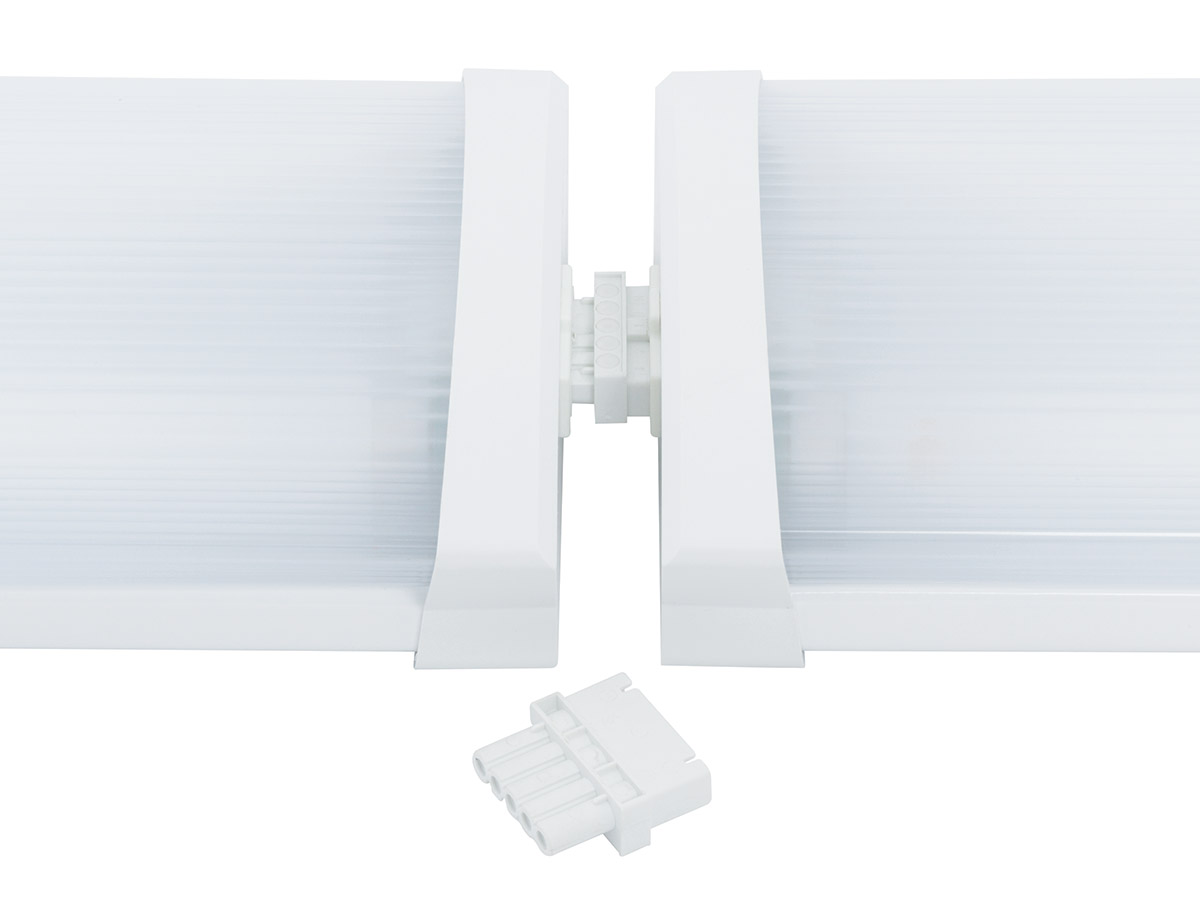

Protective grid Interconnecting 5-pole cable - female/free Interconnecting 5-pole cable - male/free Interconnecting 5-pole cable - female/male 5-pole wiring terminal block

Drawings and graphs of luminosity

Drawing
Luminosity graph

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Batten plastic indoor LED light fitting for surface mounting on the ceiling or on the wall, with base made of metal sheet and with diffuser made of translucent polycarbonate.

The light fitting is suitable for offices, hallways, school interiors, libraries, lecture rooms, sanitary rooms, hospitals and passenger terminals.

Thanks to its high luminous efficiency and low electricity consumption it is a suitable replacement for light fittings with fluorescent tubes.
