PRIMA LED TRS

One-row plastic industrial LED light fitting, for direct and indirect illumination with diffuser made of transparent polycarbonate.

Product variants and technical data Clicking the 5-digit code displays other product information.
Code Type Ta Max.:
[°C]		 Luminous flux of LED modules
[lm]		 Luminous flux of light fitting:
[lm]		 Power consumption:
[W]		 System efficacy:
[lm/W]		 Net weight:
[kg]		 A
[mm]		 D
[mm]
88000 PRIMA LED 1.2ft TRS PC 1300/840 45 1310 1170 8,2 143 1,3 662 350
88010 PRIMA LED 1.2ft TRS PC 1600/840 45 1560 1390 9,8 142 1,2 662 350
88020 PRIMA LED 1.2ft TRS PC 2200/840 40 2140 1900 13,2 144 1,3 662 350
88030 PRIMA LED 1.4ft TRS PC 2600/840 45 2600 2310 16,1 143 1,9 1272 700
88040 PRIMA LED 1.4ft TRS PC 3200/840 45 3100 2760 19,1 145 1,7 1272 700
88050 PRIMA LED 1.4ft TRS PC 4400/840 40 4300 3830 26 147 1,9 1272 700
88060 PRIMA LED 1.4ft TRS PC 6400/840 40 6120 5450 36,1 151 1,9 1272 700
88070 PRIMA LED 1.5ft TRS PC 3250/840 45 3240 2880 19,5 148 2,3 1572 940
88080 PRIMA LED 1.5ft TRS PC 4000/840 45 3850 3430 23,3 147 2,2 1572 940
88090 PRIMA LED 1.5ft TRS PC 5500/840 40 5340 4750 31,9 149 2,3 1572 940
88100 PRIMA LED 1.5ft TRS PC 8000/840 40 7780 6920 44,3 156 2,3 1572 940
CE ENEC CB HACCP
PRIMA LED TRS PRIMA LED TRS PRIMA LED TRS PRIMA LED TRS PRIMA LED TRS PRIMA LED TRS PRIMA LED TRS PRIMA LED TRS

Features

  • Constant luminous flux even in ambient temperature of -25 °C
  • Up to 45 % lower electricity consumption when compared to tubes
  • In DALI version: possibility of constant luminous flux for whole lifetime (CLO)
  • It can be delivered in Tunable White version at request
  • Standard model - CRI > 80: 4000 K
  • At request CRI > 80: 3000 K, 5000 K, 6500 K, CRI > 90: 3000 K, 4000 K

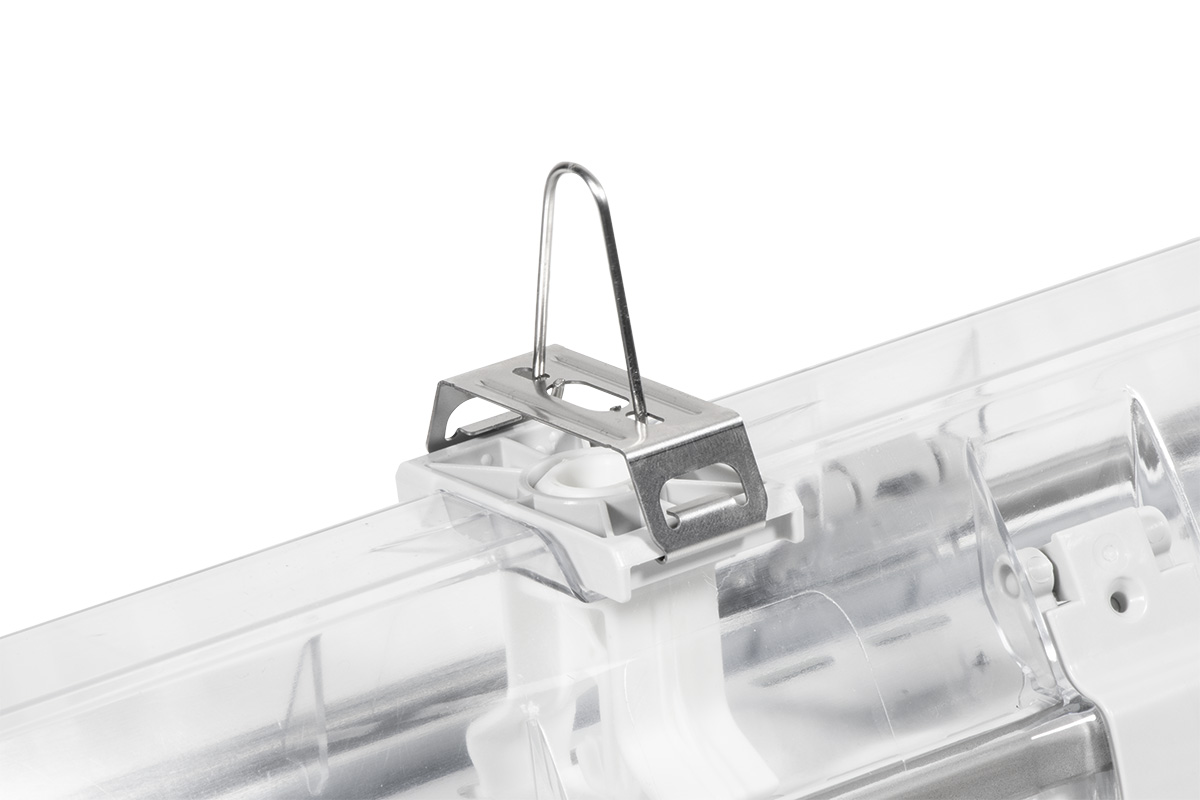

  • Package contains stainless hooks and stainless brackets

Technical data

  • System efficacy: 156 lm/W
  • Degree of protection: IP66
  • Minimum ambient temperature: ta = -25 °C
  • Maximum ambient temperature: ta = 45 °C
  • Life time: 50000 hours / L90/B10
  • Unified Glare Ratio (UGR) from 18,1 to 21,2
  • Impact strength: IK10
  • Chromaticity tolerance (initial MacAdam): SDCM3
  • Certification CE, ENEC, CB, HACCP

Attachment method

  • Suitable for suspended mounting
  • Suitable for ceiling mounting
  • Suitable for wall mounting
  • Suitable for surface mounting

Materials / finishes

  • Body: clear PC (high mechanical resistance, UV stability)
  • Diffuser: clear PC (high mechanical resistance, UV stability)
  • Reflector: steel sheet, white (RAL 9003), modified for indirect lighting
  • Clips: polyamide + 15 % fibreglass, stainless steel + polyamide
  • Sealing: polyurethane (PUR), foam-filled base groove
  • Connection: screwless three-pole terminal block, screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless five-pole terminal block, screwless seven-pole terminal block, 7-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand)
  • Cable glands: Cable glands: PG 13.5 thread

Electric equipment

  • It can be delivered in dimmable version

Download

Data sheet
CE
ENEC
CB
HACCP

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

Graphisoft ARCHICAD
Autodesk REVIT

Accessories to PRIMA LED TRS

Protective grid Side hanger with blocking Canalis busbar system connector Stucchi connector Wieland connector Locking set for bracket G3

Drawings and graphs of luminosity

Drawing
Luminosity graph

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

This luminaire, which features a clear base, is a perfect source of both direct and indirect illumination for spaces with low ceilings. The light fitting is suitable for industrial indoor and outdoor roofed spaces, warehouses, sports areas, workshops, garages, transport terminals, utility structures and laboratories without a danger of explosion of gas, dust and combustible fumes.

The light fitting is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have the increased resistance against deformation and impact.

(It is necessary to consider exhalation in the air which can reduce the usability of the plastic at installations in an aggressive environment.
