NAON

Technical data

• System efficacy: lm/W
• Degree of protection: IP20
• Minimum ambient temperature: ta = -25 °C
• Maximum ambient temperature: ta = 35 °C
• Life time: 50000 hours / L90/B10
• Unified Glare Ratio (UGR) from 24 to 27
• Impact strength: IK02
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE

Attachment method

• Suitable for suspended mounting
• Suitable for ceiling mounting
• Suitable for wall mounting
• Suitable for surface mounting

Materials / finishes

• Body: steel sheet, white (RAL 9003)
• Diffuser: acrylic (PMMA), sandblasted from both sides
• Reflector: steel sheet, white (RAL 9003)
• Connection: screwless three-pole terminal block, screwless five-pole terminal block, screwless seven-pole terminal block
• Cable glands: Cable glands: rubber

Electric equipment

• It can be delivered in dimmable version

Download

Data sheet

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to NAON

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

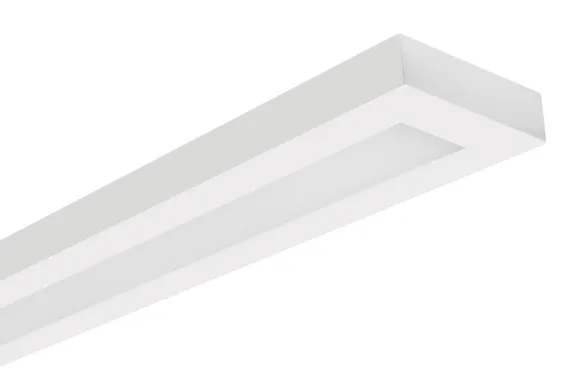

Advanced lamp with low profile of total height of 45 mm only.

Body of the lamp is made of painted metal sheet and it is supplemented with acryl diffuser sandblasted on both sides.

The light fitting is suitable for offices, hallways, school interiors, libraries, lecture rooms, sanitary rooms, hospitals and passenger terminals.
