CANOPUS MAX

Features

• Standard model - CRI > 80: 4000 K
• Possibility of using in even higher ambient temperatures under the condition of a shortened service life of the light fitting – parameters solved within a particular project
• Possibility of delivery of the diffuser with a safety foil (SF)

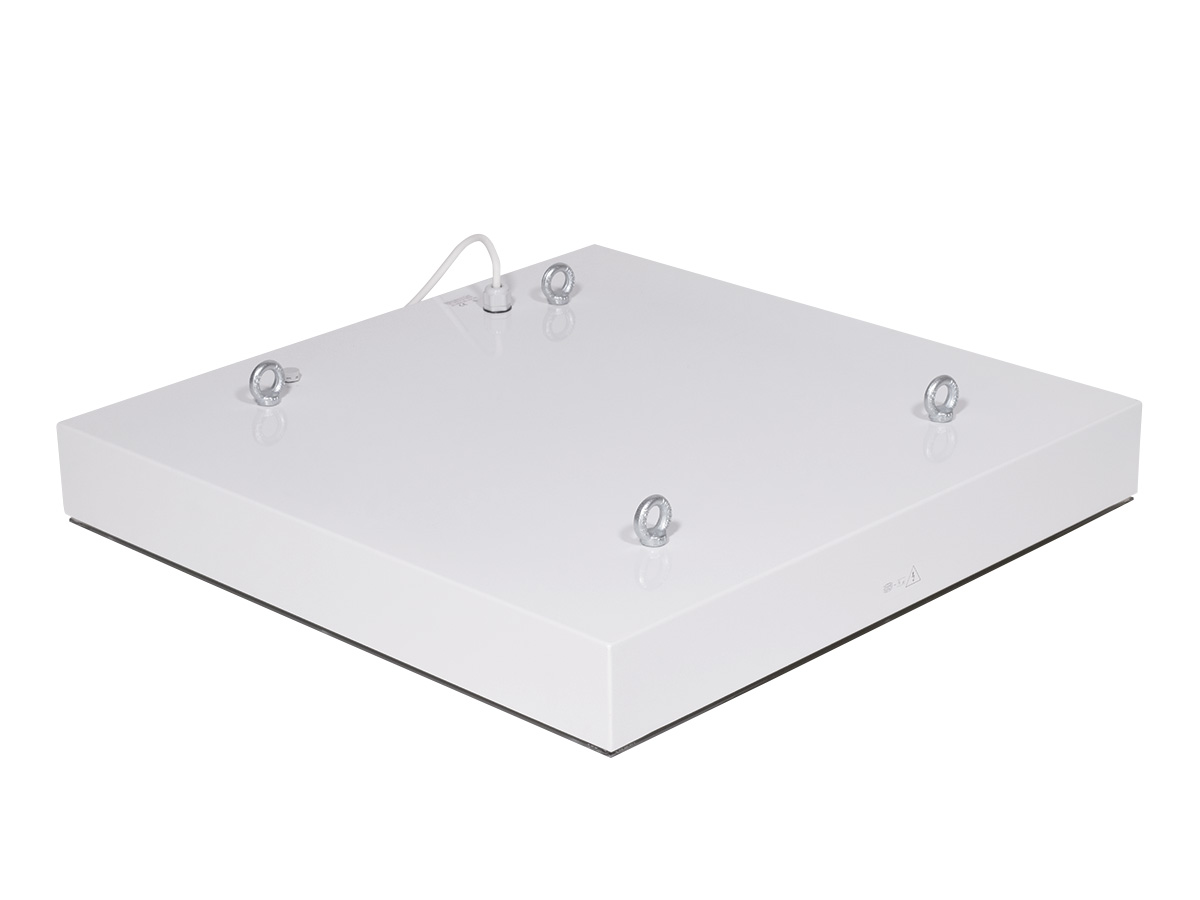

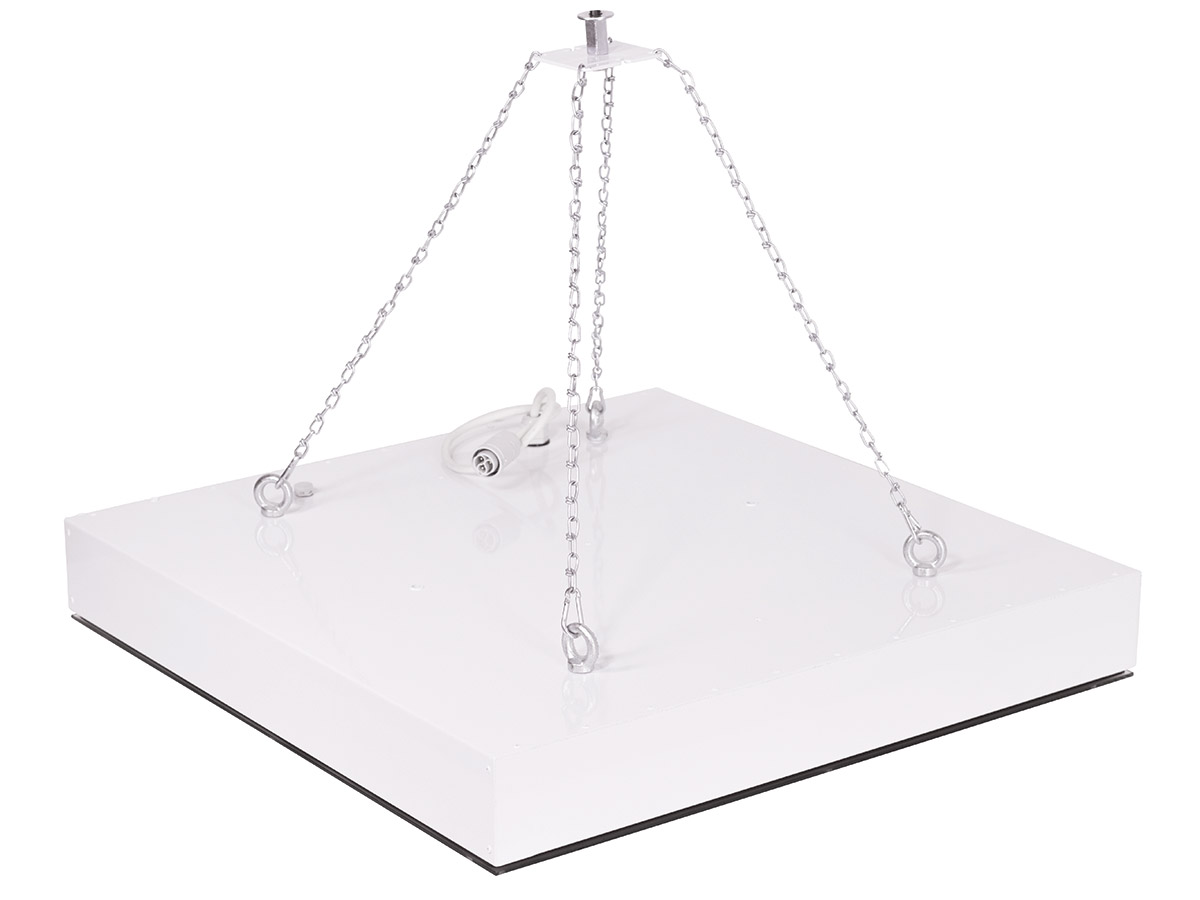

• All versions delivered including suspension lugs M6 (4 pcs)

Technical data

• System efficacy: 144 lm/W
• Degree of protection: IP65
• Minimum ambient temperature: ta = -40 °C
• Maximum ambient temperature: ta = 60 °C
• Minimum ambient temperature: ta = 0 °C version with emergency back-up source
• Maximum ambient temperature: ta = 35 °C version with emergency back-up source
• Life time: 50000 hours / L80/B10
• Impact strength: IK10
• Chromaticity tolerance (initial MacAdam): SDCM3
• Certification CE, Ballproof

Materials / finishes

• Body: steel sheet, white (RAL 9003)
• Diffuser: satin, heat-strengthened safety glass
• Reflector: steel sheet, white (RAL 9003)
• Sealing: EPDM glued to the base of the light

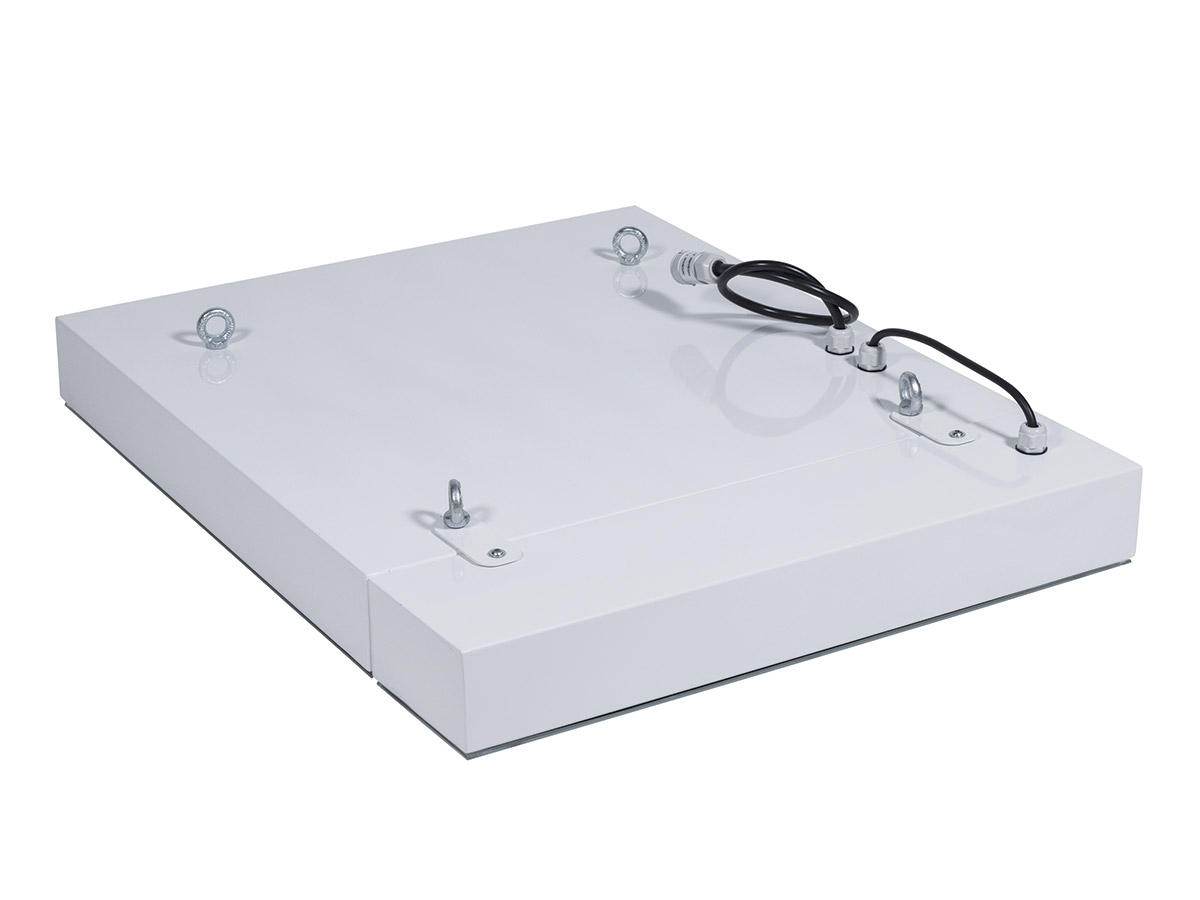

• Connection: connector, 0.4 m cable
• Terminal block: connector, 0.4 m cable

Electric equipment

• It can be delivered in emergency version

Download

Data sheet

CE

Ballproof

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

Accessories to CANOPUS MAX

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

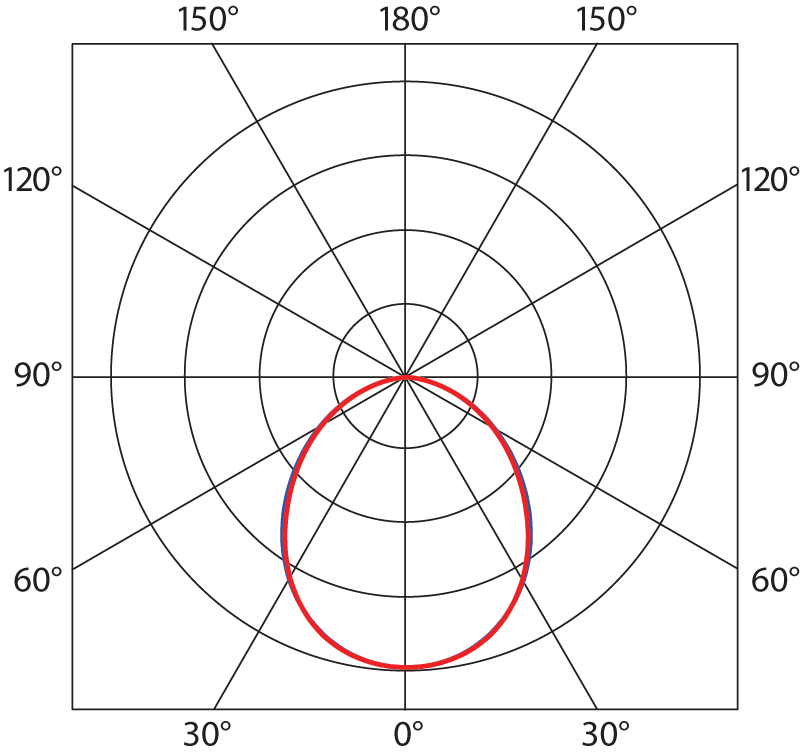

Luminosity curve example

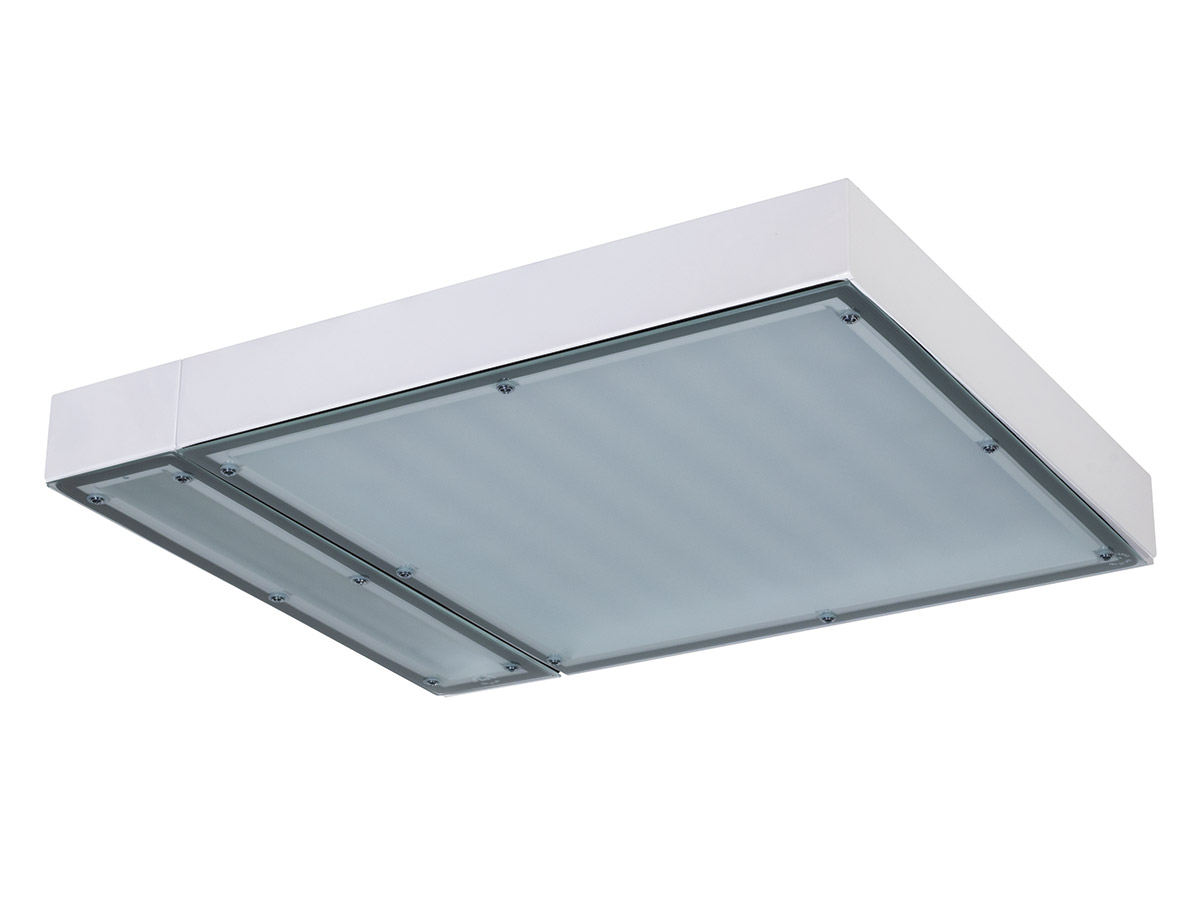

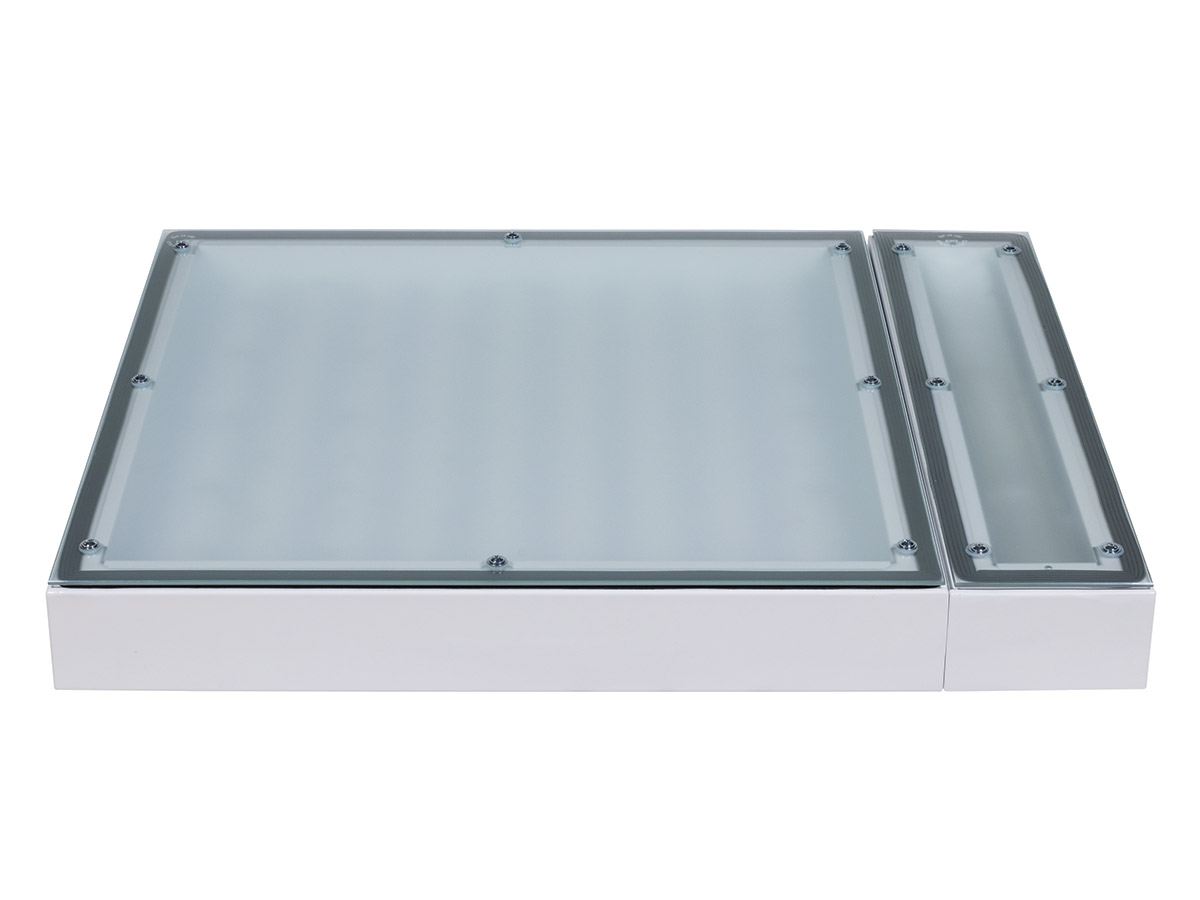

Metal industrial LED light fitting intended for extreme temperatures -40°C to +55°C, with diffuser made of satinized tempered safety glass.

The light fitting is suitable for sizable premises with high ceilings and extern ambient temperatures from -40 °C to +55 °C. The light fitting is destined mainly for heating stations, metallurgical lines, glass-works, but also for freezers, cooling plants and other premises without danger of explosion of gases, dusts and flammable vapors.

The light fitting is resistant to deformation, dust and splashing water.
