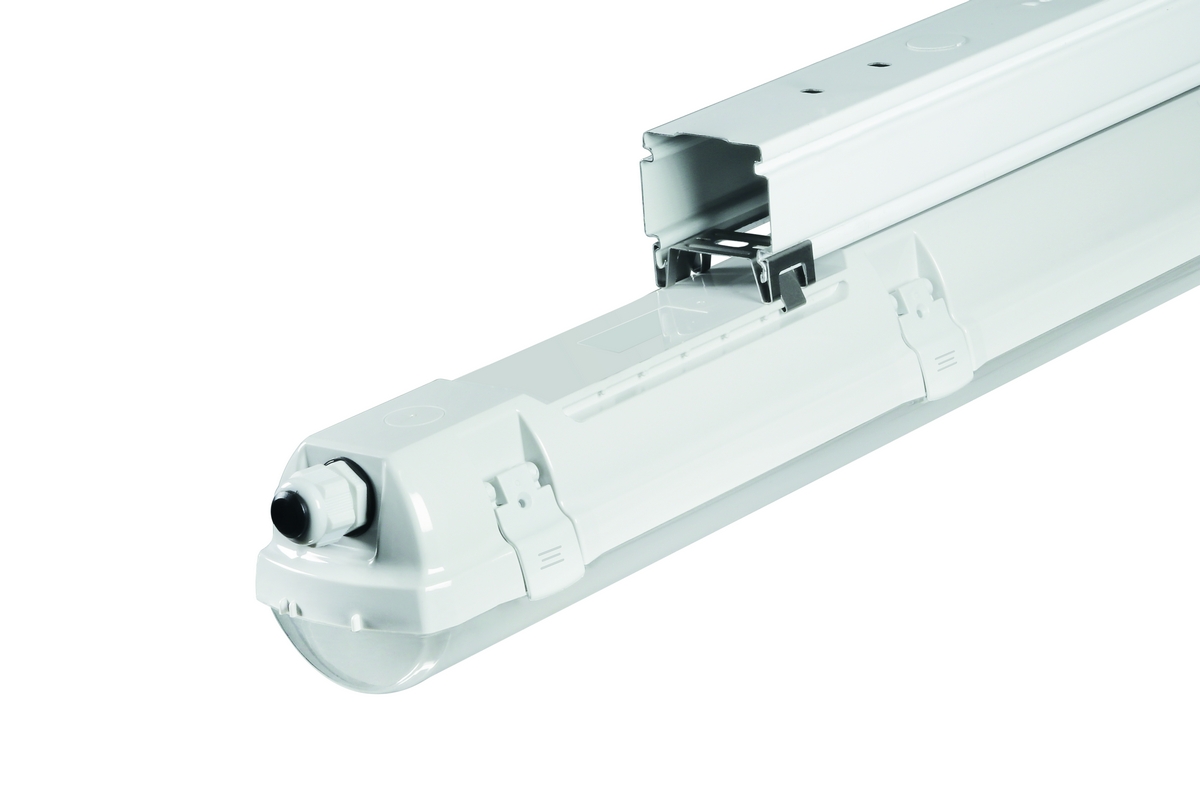

NANOTTICA NM

Technical data

• Degree of protection: IP66/IP69
• Minimum ambient temperature: ta = °C
• Maximum ambient temperature: ta = °C
• Life time: 50000 hours / L90/B10
• Certification CE

Materials / finishes

• Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
• Diffuser: translucent PC (high mechanical resistance, UV stability)

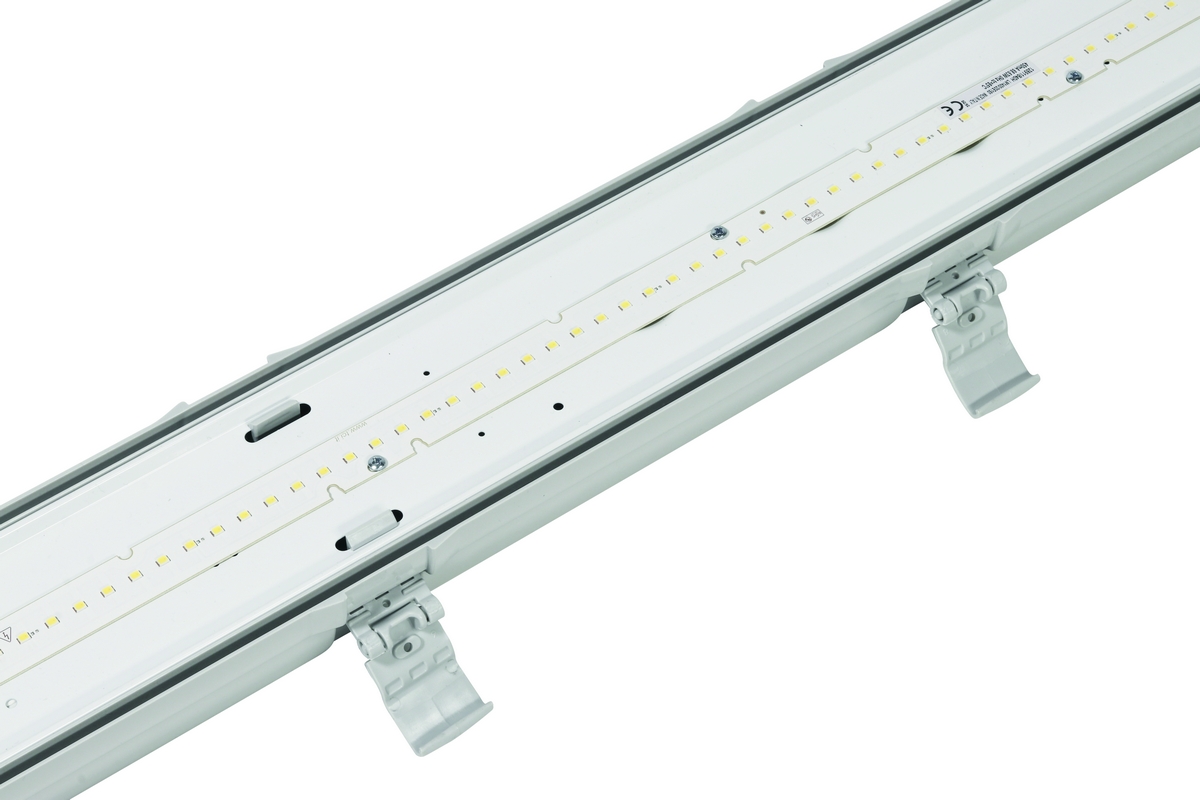

• Reflector: steel sheet, white (RAL 9003)
• Clips: polyamide + 15 % fibreglass
• Sealing: polyurethane (PUR), foam-filled base groove
• Connection: screwless five-pole terminal block

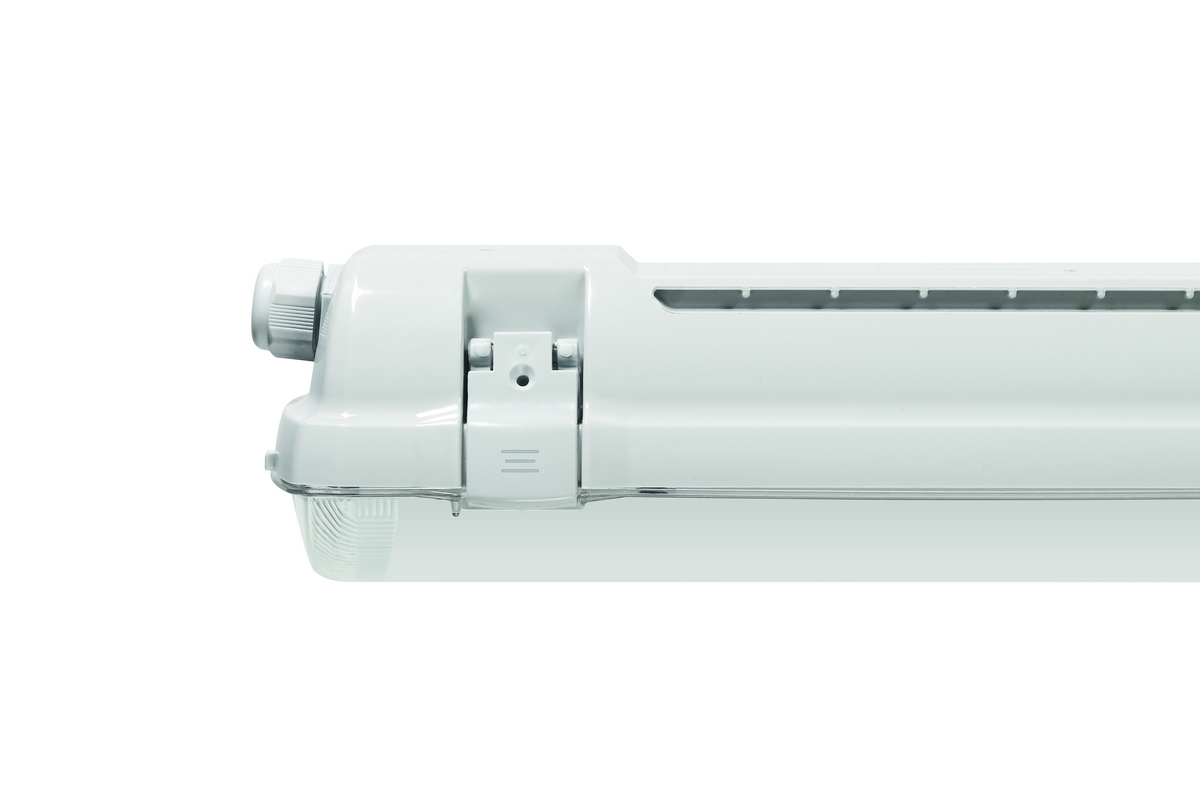

• Cable glands: PG 13.5 thread

Download

Data sheet

CE

Click the relevant product code in the table above to access the EULUMDAT (.ldt) files and the installation instructions for your luminaire.

BIM

Download the BIM objects.
More about BIM at bim.lighting.

• Plugin
• Library

• Plugin
• Library

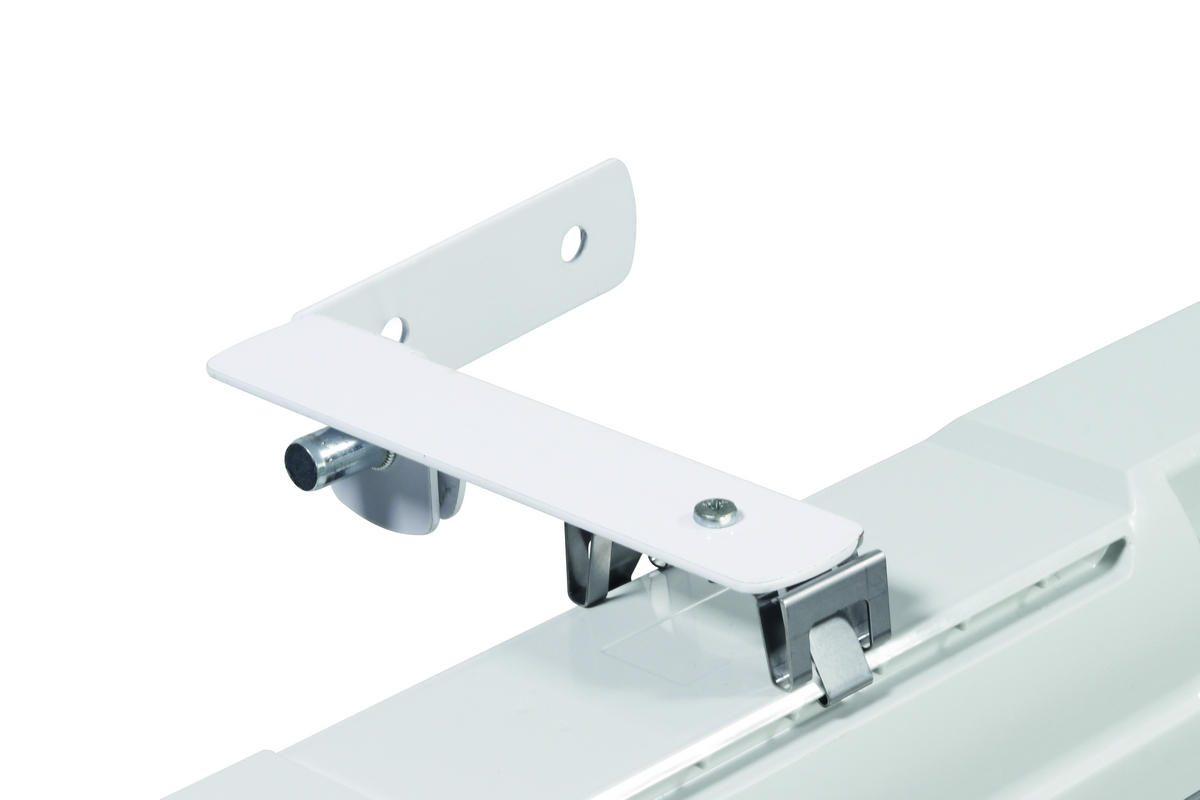

Accessories to NANOTTICA NM

Drawings and graphs of luminosity

Nothing you say?

Check out instructions in which we explain what can be read from these graphs.

Manual

Luminosity curve

The catalogue sheet of each light fitting or the electronic catalogue in our website offer the luminosity curves. The luminosity curve shows graphically how the light fitting radiates light into the space. In other words, in what direction it emits light. The light source is situated in the centre of the system - in the polar area in the graph. When the light fitting is rotationally symmetric around its vertical axis (circle, square), we construct only one intensity distribution curve in one vertical plane. Red in our case. When the light fitting is not symmetric, we add a blue curve to the graph. The blue curve shows how the light fitting shines after rotation by 90° as against the first position. When measuring the light fitting in the axis of the source, we measure the C90-C270 plane; when measuring the light fitting vertically to the axis, we measure the C0-C180 plane. See the picture below.

• The luminosity in the given direction is measured by the goniophotometer.
• TREVOS disposes of that device.
• We are able to measure all light fittings by ourselves and to record the luminous output.
• So we can be sure that the light fitting shines as it should.

Luminosity curve example

Non-maintained emergency luminaire for escape routes, available for use in high ambient temperature, ta = 50 °C, is intended by its function and shape primarily for being in a set with NANOTTICA light fittings.

It is recommended for escape routes of interior industrial rooms, storage halls, sports premises, agricultural buildings and laboratories without hazard of explosion of gases, dusts and flammable vapours.

It is resistant to dust, moisture and spouting water. The body and the diffuser made of polycarbonate (PC) have increased resistance against deformation and impact.

Atmosphere emissions must be considered, as they may reduce the usability of plastics at installation in aggressive environment, see p. 317.
